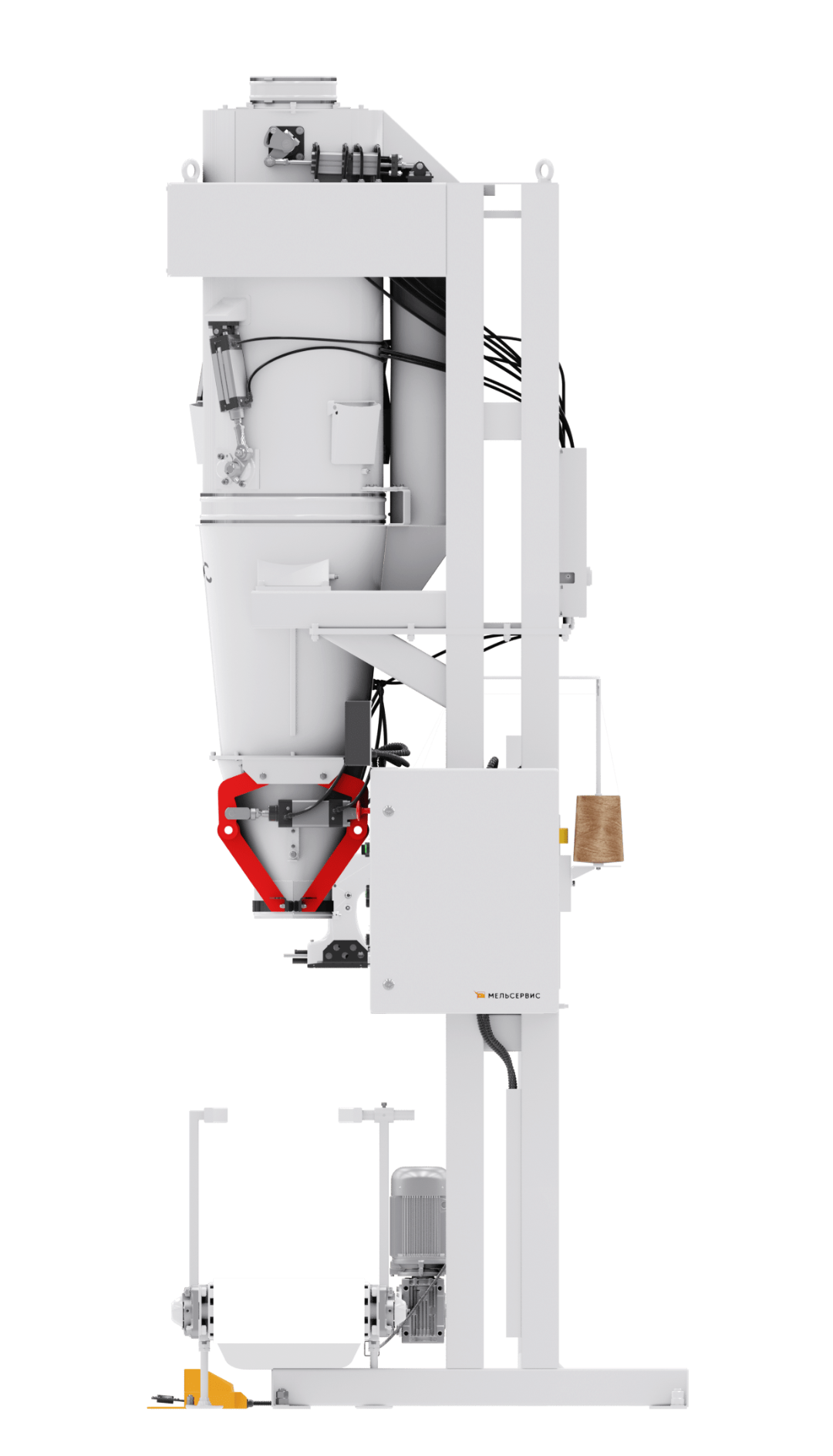

MVD-MS-50/2
Filling bags with 25-50 kg dose of powdered, grainy or lump materials.
Net weighing in a hopper
TECHNICAL SPECIFICATIONS:
- Capacity: up to 420 bags per hour
- Operational ambient temperature: +5...+40°С
- Upper limit of weighing: 50kg
- Lower limit of weighing: 25kg
- Calibration weight class in compliance with GOST 8.610-2012: 0,5
- Conveyor length: 3,0m
- Conveyor belt width: 400mm
- Gravimetric feeder (VF modification)
- Dual feeding screw (DF modification)
- Belt feeder ( DF modification)
BILL OF COMPONENTS:
- Underframe
- Automatic weight doser MS-50
- Control panel board with weigher
- Oval-shaped neck with pneumatic seal
- Stitching conveyor MS-KL-3,0-40
- Stationary rack with bag-stitching machine
MVD-MS-50/2
MVD-MS-50/2
MVD-MS-50/2
MVD-MS-50/2
MVD-MS-50/2
Features and optional extras
Our priority is focus on Customer, their needs and their facility, therefore we offer optional extras for increased usability and better performance of our systems
Dual feeding screw
Belt feeder
Electrical equipment by Siemens, Schneider Electric

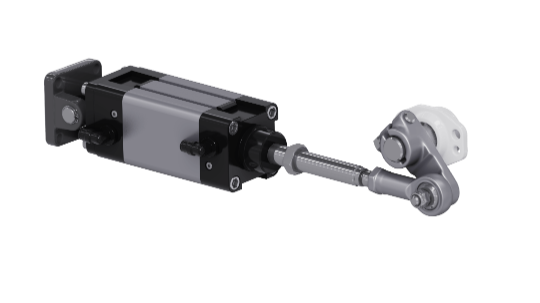

Pneumatics by Camozzi
Gearmotors by SEW Eurodrive
Installation into a mobile container
optional

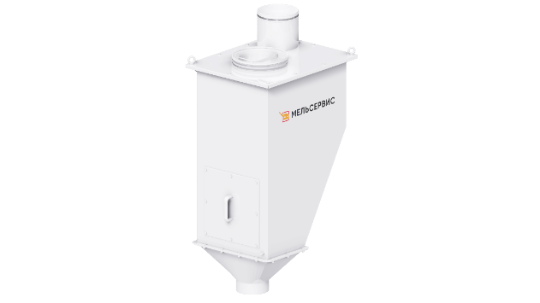

Operational and accumulation hoppers
optional
Local dust suction unit
optional
Supplementary conveyors
optional
Electrical height adjustment for stitching conveyor
optional
Stitching machine with dual thread and automatic trimmer
optional
Product agitators
optional
Handled materials
