Comprehensive bagging line for big bags

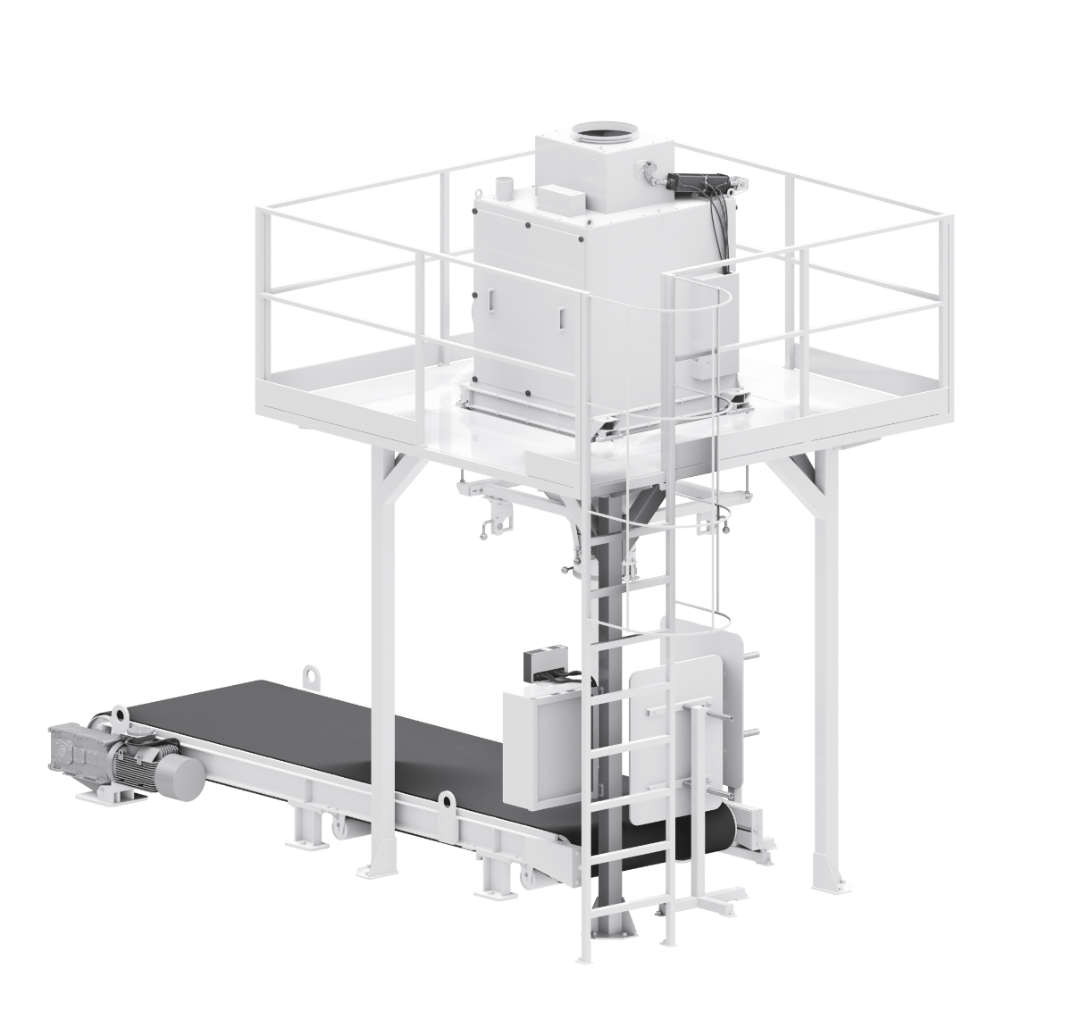

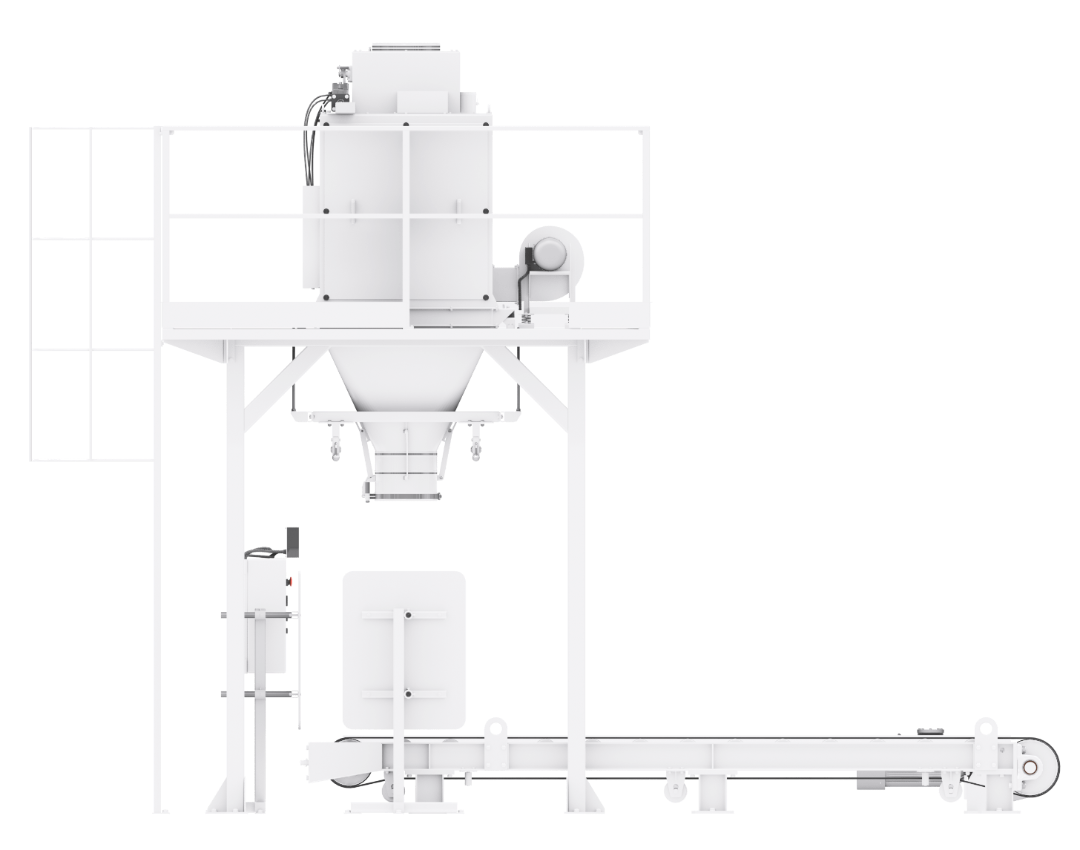

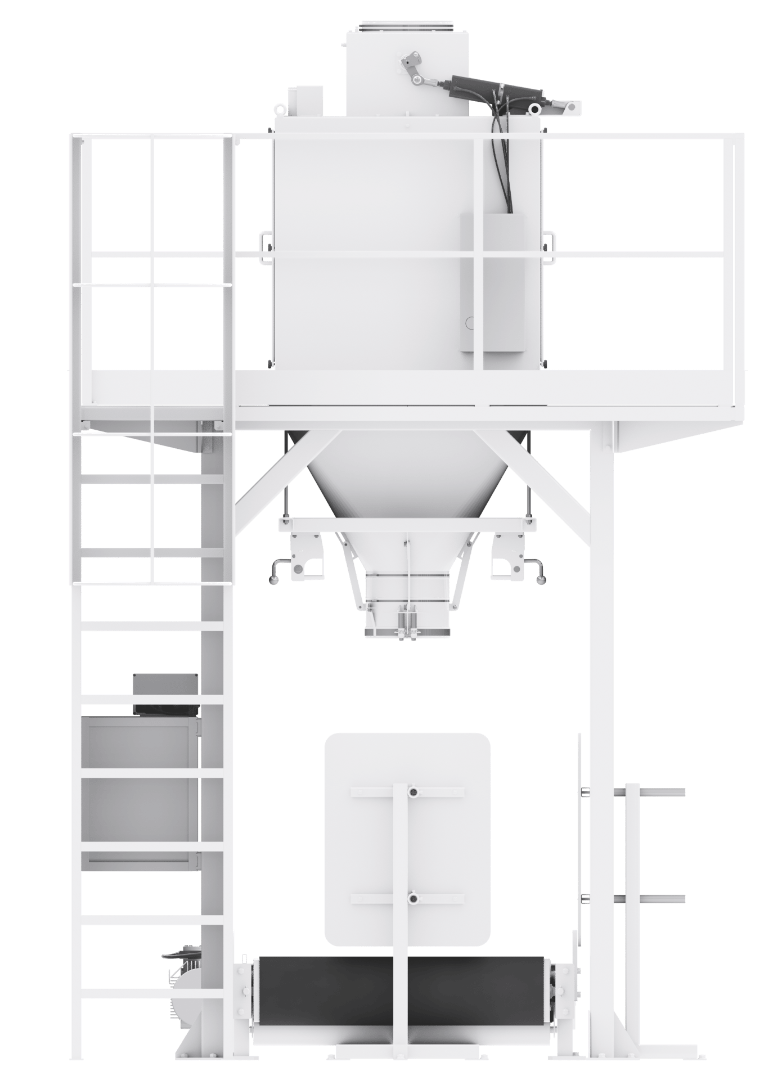

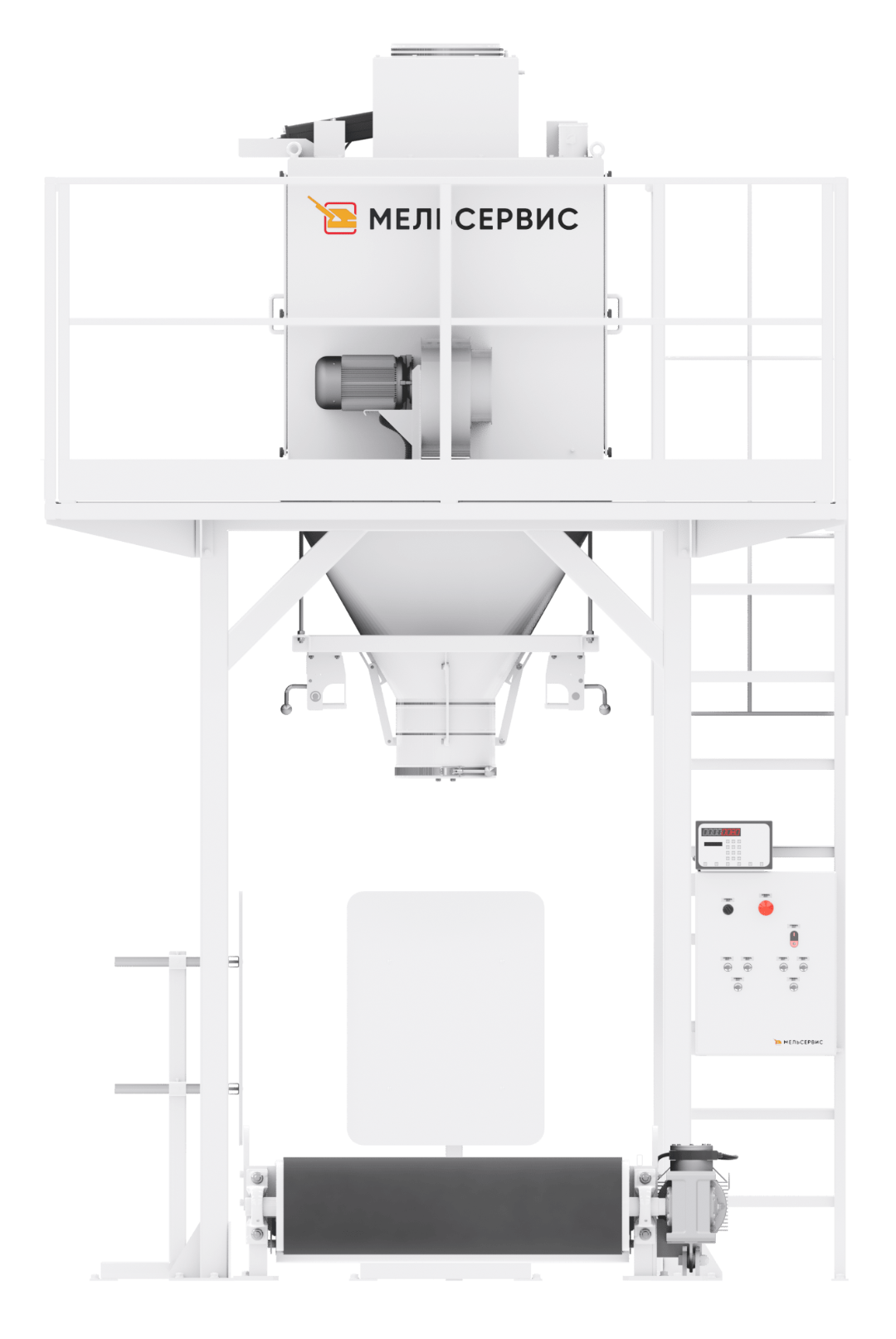

Bagging line MVD-MS-500-VF-MKR
Filling big bags with lump, grainy or powdered materials.
Net weighing in a hopper
TECHNICAL SPECIFICATIONS:
- Capacity: up to 40 containers per hour
- FIBC from от 0,8 to 1,4 м3
- Upper limit of dosing 500kg
- Lower limit of dosing 100kg
- Calibration weight class in compliance with GOST 8.610-2012: 0,5
- Length of outfeed conveyor: 4m
- Gravimetric feeder
- Dual feeding screw
- Belt feeder

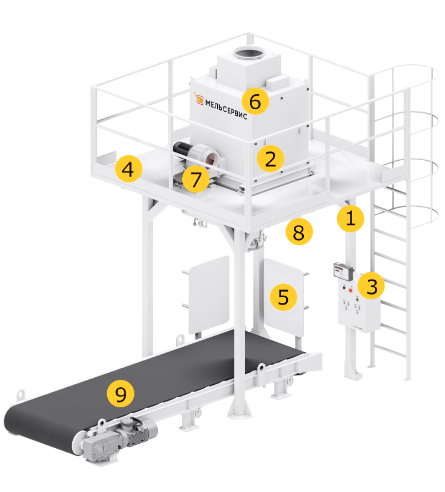

BILL OF COMPONENTS:
- Underframe
- Weight doser MS-1000
- Control panel board with weigher
- Service platforms
- Spacer plates
- Aspiration pipe
- Fan blower FIBC
- Strapper
- Belt conveyor MS-KL-4,0-120
MVD-MS-500-VF-MKR
MVD-MS-500-VF-MKR
MVD-MS-500-VF-MKR
MVD-MS-500-VF-MKR
MVD-MS-500-VF-MKR
Features and optional extras
Our priority is focus on Customer, their needs and their facility, therefore we offer optional extras for increased usability and better performance of our systems
Dual feeding screw
Belt feeder
Electrical equipment by Siemens, Schneider Electric
Pneumatics by Camozzi
Gearmotors by SEW Eurodrive
Operational and accumulation hoppers
optional
Local dust suction unit
optional
Supplementary conveyors
optional
Product agitators
optional
Handled materials
