Comprehensive bagging lines

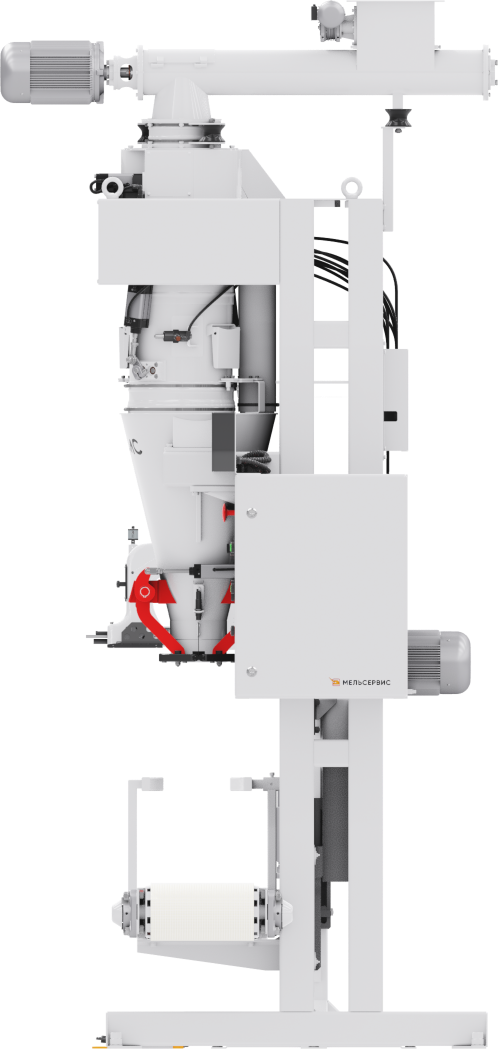

Comprehensive bagging systems MVD-MS-10/2

Filling drawstring bags with 5-10 kg dose of powdered, grainy or lump materials.

Net weighing in a hopper

TECHNICAL SPECIFICATIONS:

  • Capacity: up to 360 bags per hour
  • Operational ambient temperature: +5...+40°С
  • Upper limit of weighing: 10kg
  • Lower limit of weighing: 5kg
  • Calibration weight class in compliance with GOST 8.610-2012: 0,5
  • Conveyor length: 2,0 m
  • Conveyor belt width: 300 mm
Depending on handled material, we supply our system with one of the following feeders:

  • Gravimetric feeder (VF modification)
  • Dual feeding screw (DF modification)
  • Belt feeder ( DF modification)

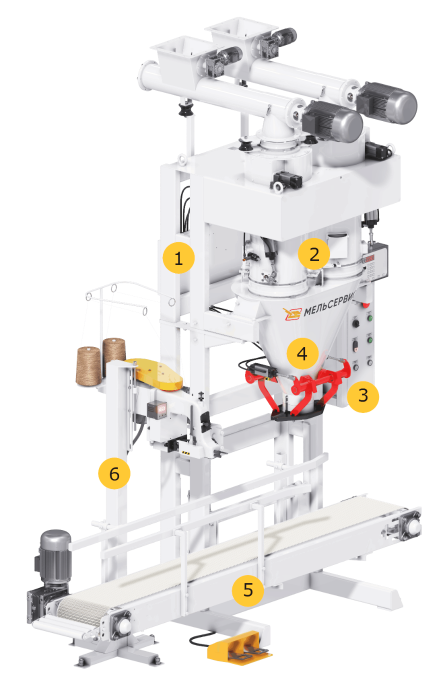

BILL OF COMPONENTS:

  1. Underframe
  2. Automatic weight doser MS-50
  3. Control panel board with weigher
  4. Oval-shaped neck with pneumatic seal
  5. Stitching conveyor MS-KL-2,0-30
  6. Stationary rack with bag-stitching machine

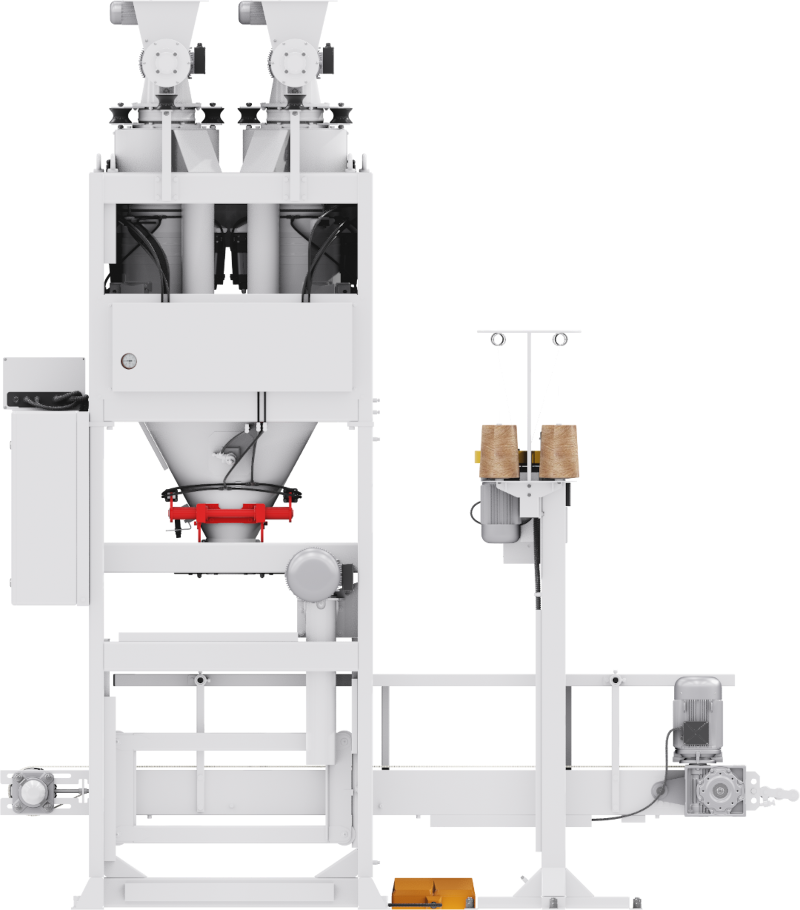

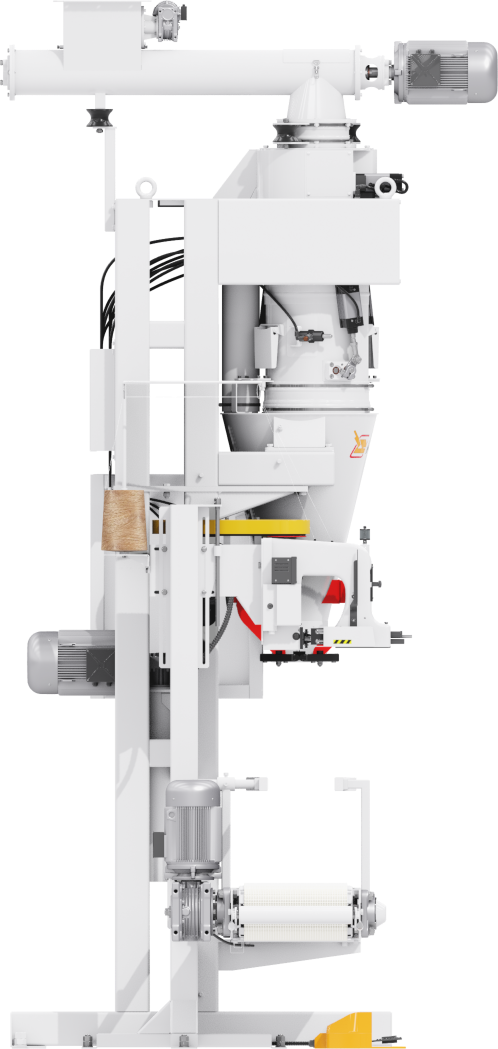

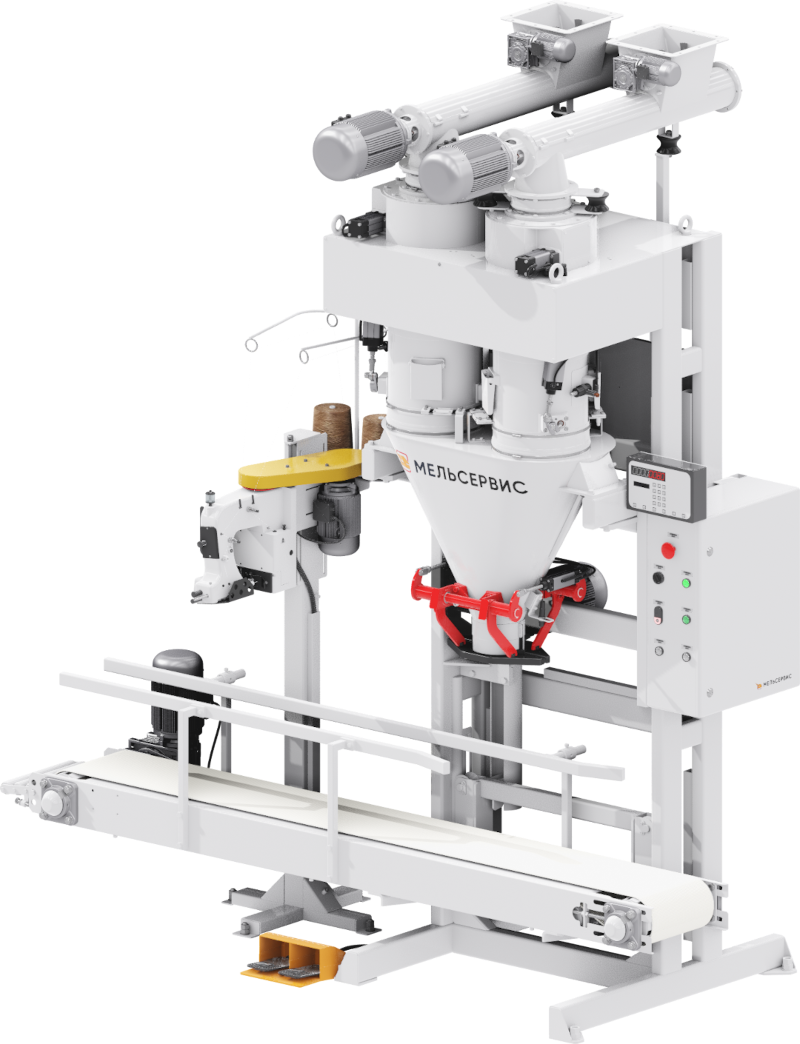

Comprehensive bagging systems MVD-MS-10/2

Features and optional extras

Our priority is focus on Customer, their needs and their facility, therefore we offer optional extras for increased usability and better performance of our systems

Dual feeding screw

Dual feeding screw

Belt feeder

Belt feeder

Electrical equipment by Siemens, Schneider Electric

Electrical equipment by Siemens, Schneider Electric

Pneumatics by Camozzi

Pneumatics by Camozzi

Gearmotors by SEW Eurodrive

Gearmotors by SEW Eurodrive

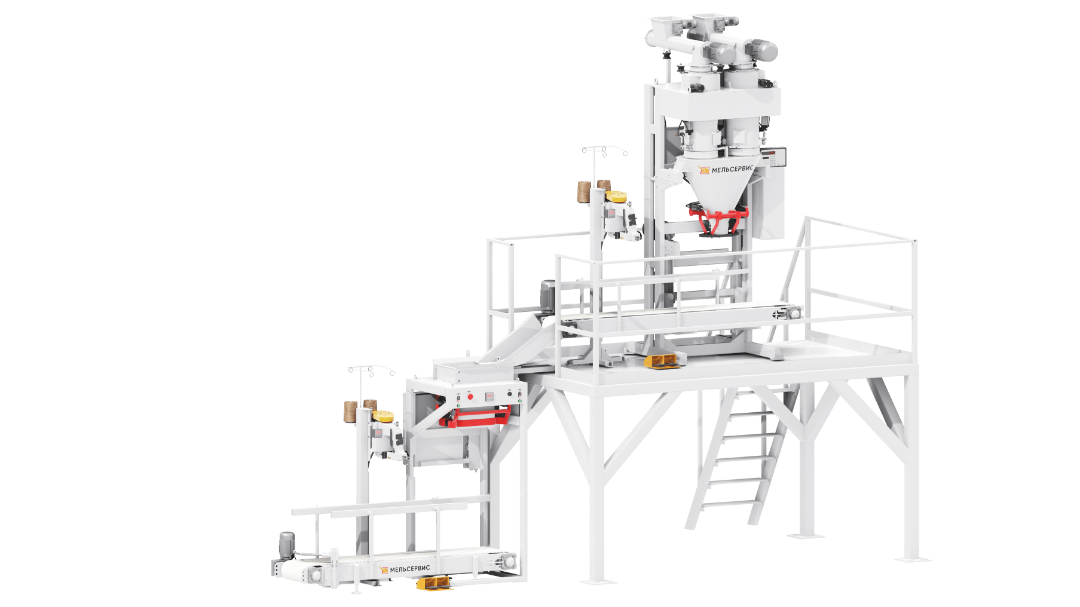

Installation into a mobile container

Installation into a mobile container

optional

Operational and accumulation hoppers

Operational and accumulation hoppers

optional
Local dust suction unit

Local dust suction unit

optional

Supplementary conveyors

Supplementary conveyors

optional
Electrical height adjustment for stitching conveyor

Electrical height adjustment for stitching conveyor

optional
Stitching machine with dual thread and automatic trimmer

Stitching machine with dual thread and automatic trimmer

optional
Product agitators

Product agitators

optional

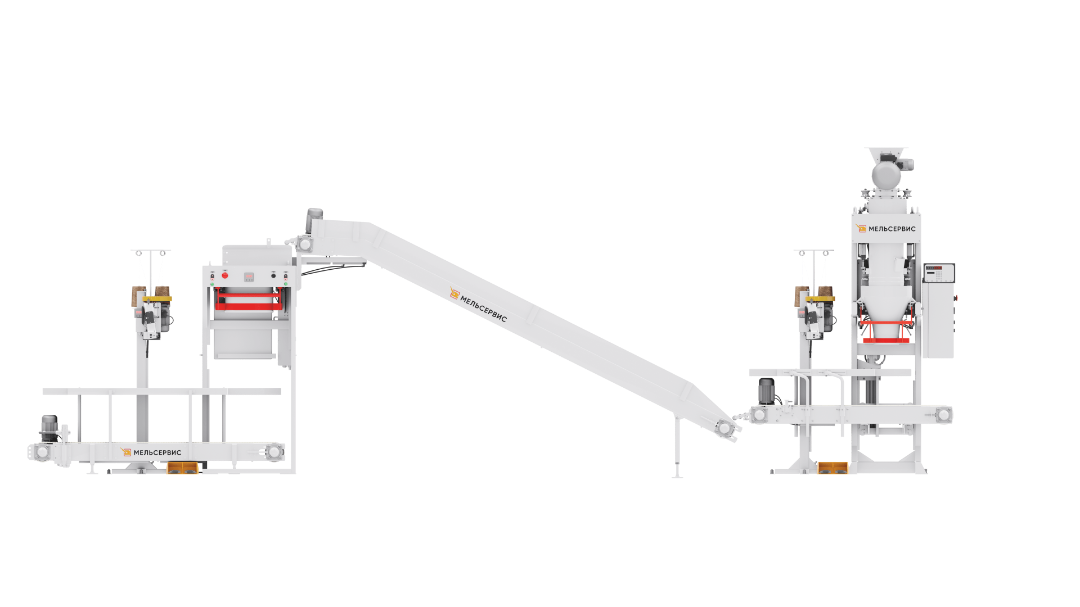

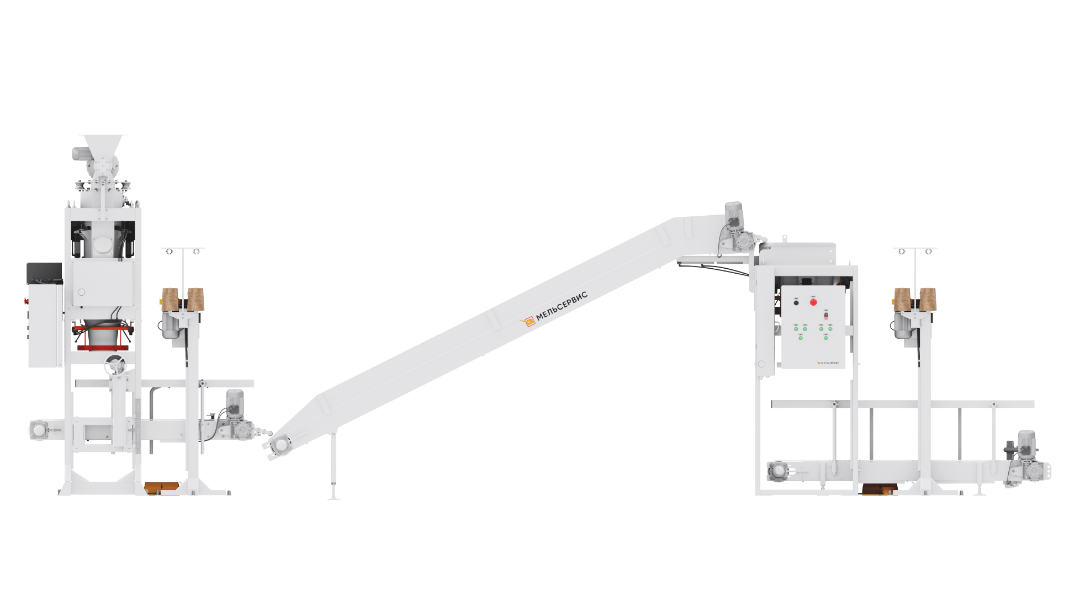

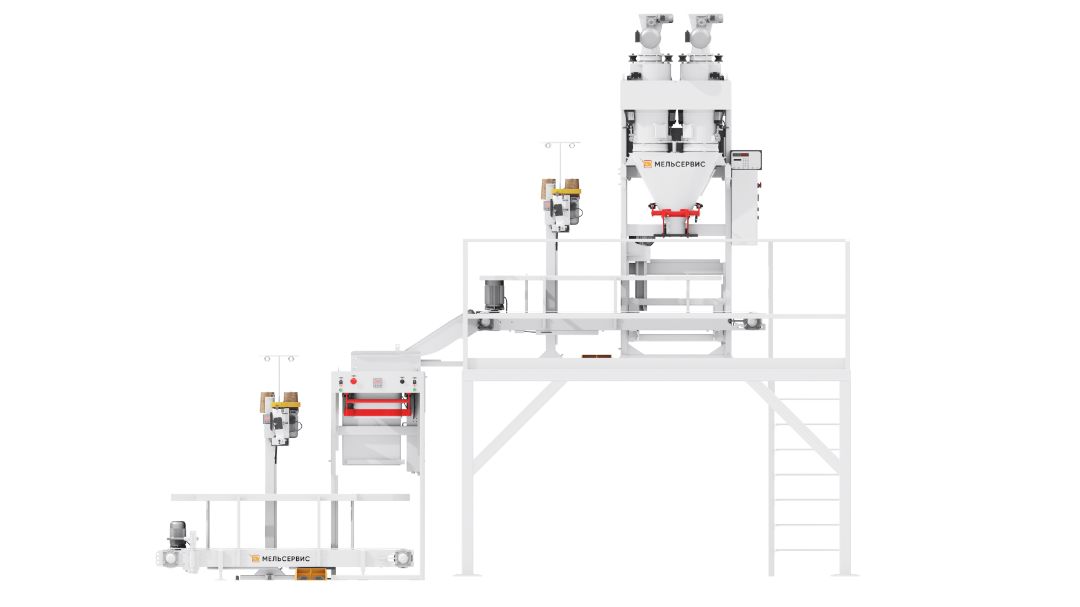

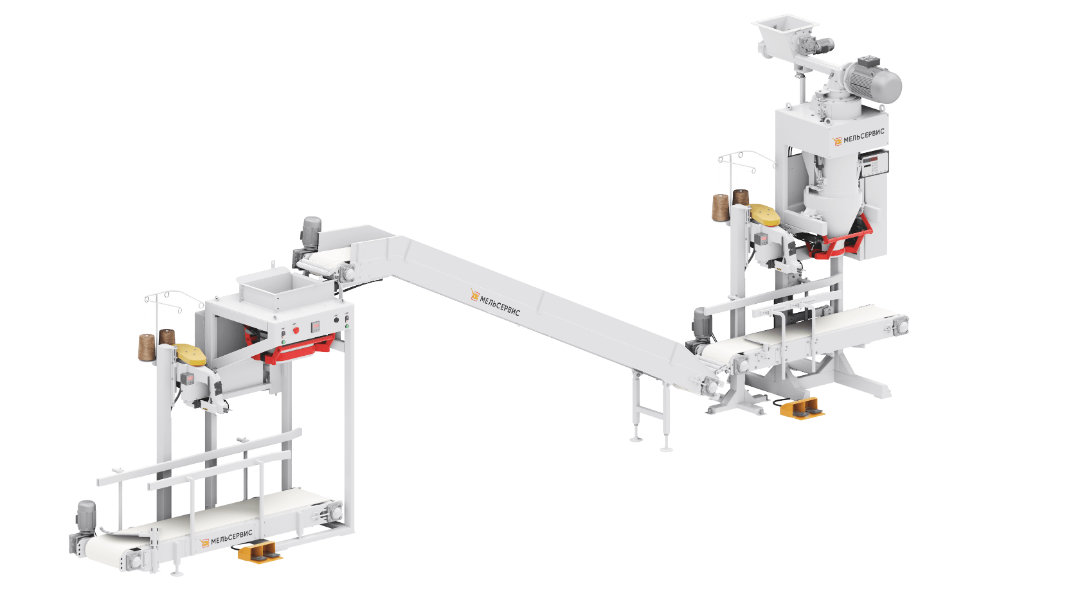

Multi-pack modules

Semi-automated packaging of drawstring bags into 50 kg multi-pack polypropylene bags.

 Horizontal or vertical packaging arrangement

Parts and units that contact with handled materials can be optionally manufactured from corrosion resistant steel AISI 304 and supplied with electrical equipment of IP-65
