LOADING SYSTEMS

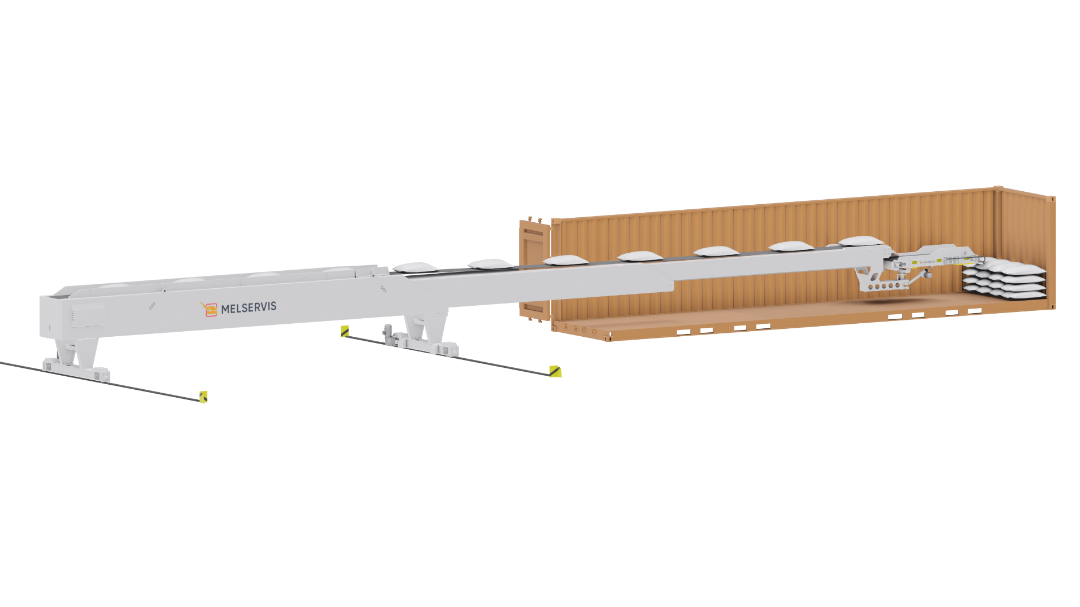

Telescopic bag loading machine

MS-PKT-A-12,4

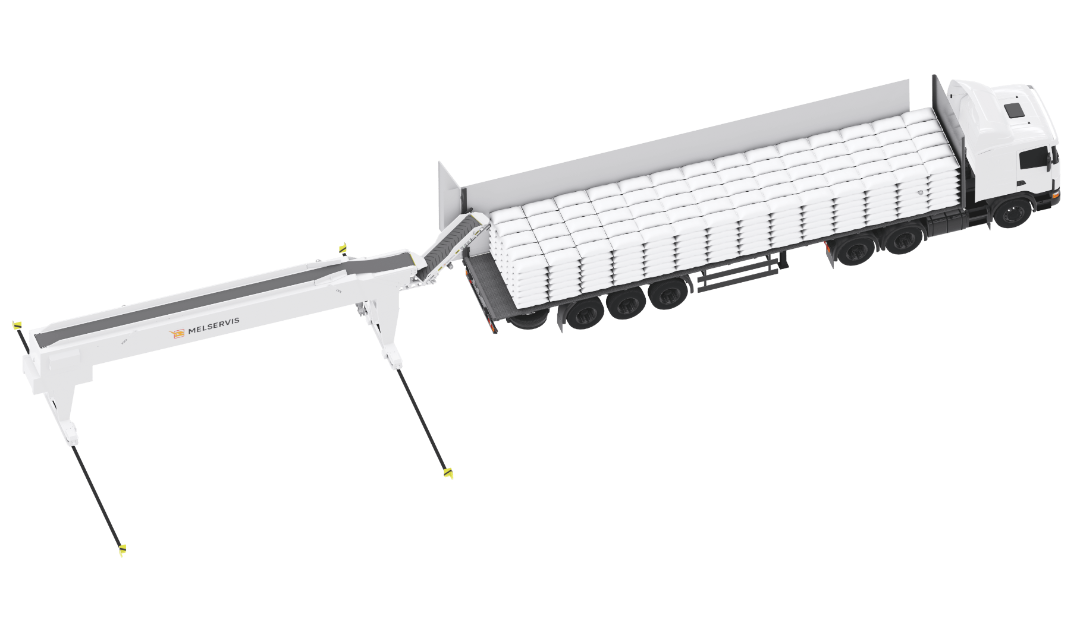

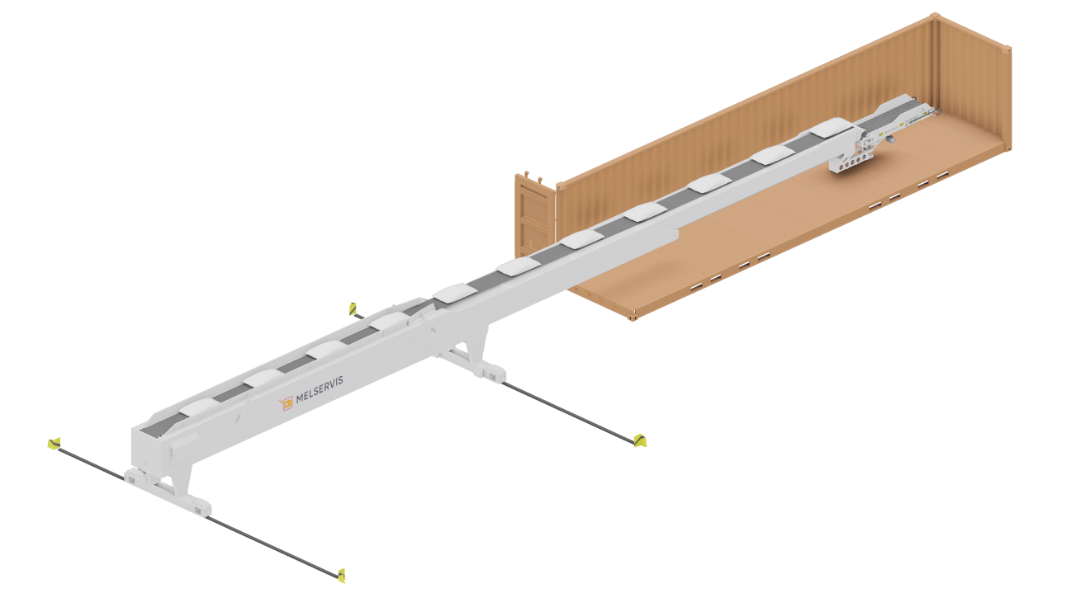

Stacking of 10-50kg cargo into long vehicles, medium duty trucks and maritime containers of 20ft. and 40ft.

TECHNICAL SPECIFICATIONS:

  • Capacity: up to 2400 bags per hour

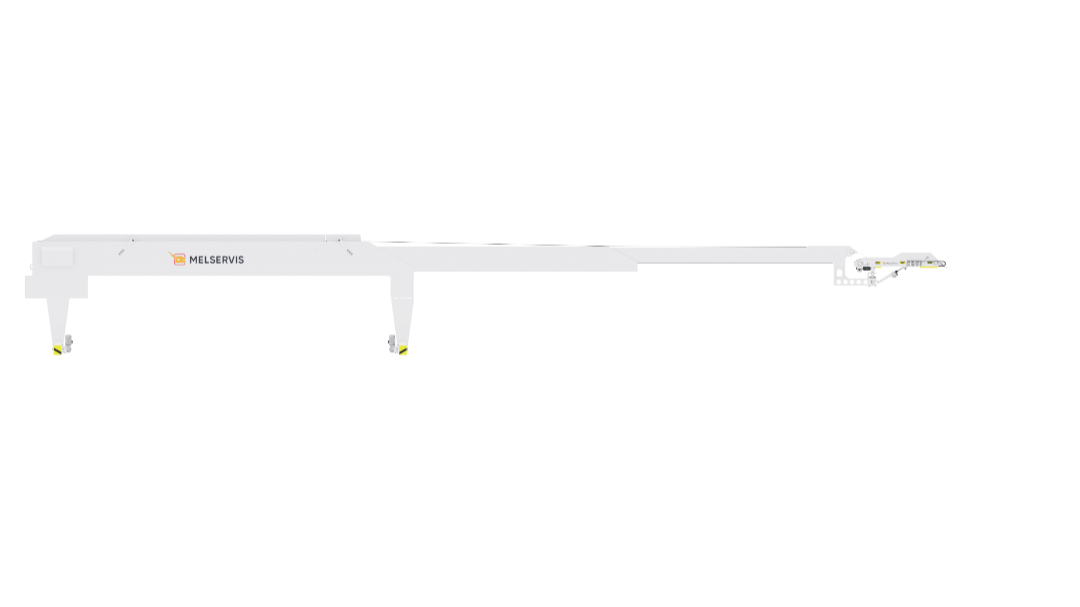

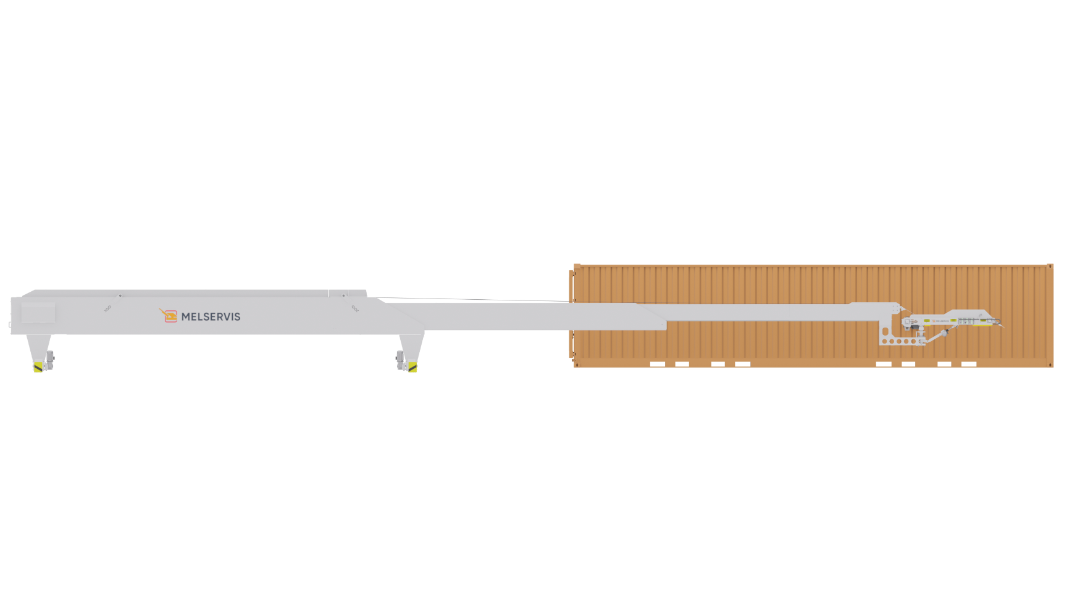

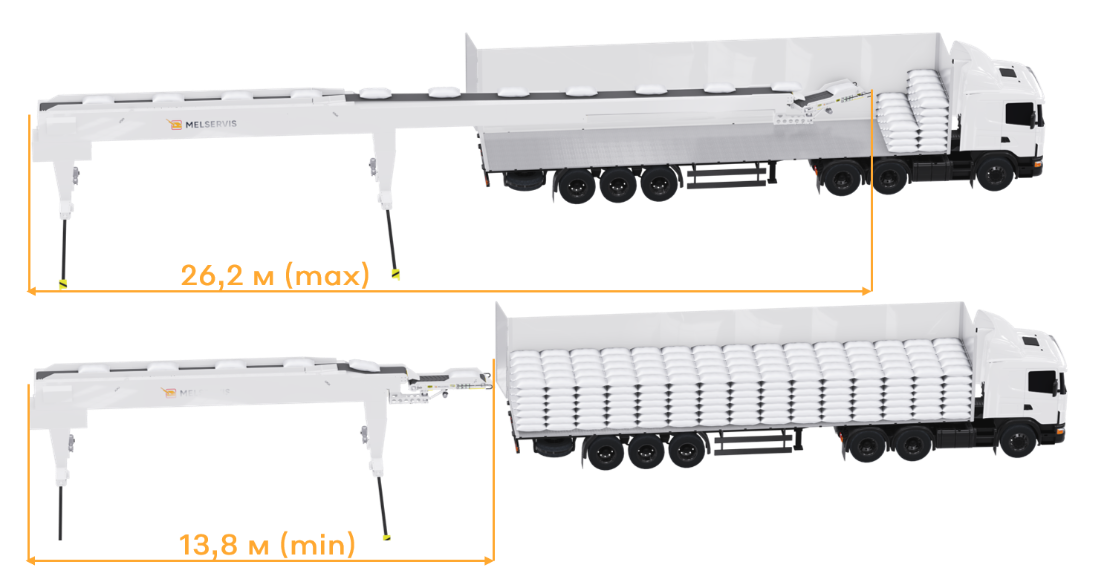

  • Length in operation L=26,2 m

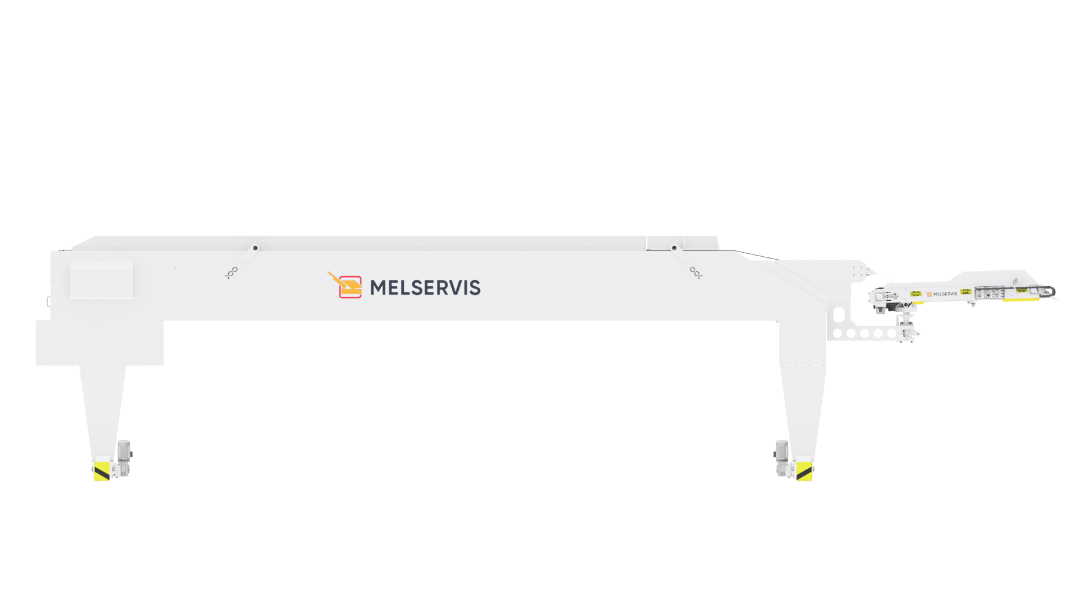

  • Length when idle: 13,8 m
  • Loading area of up to 14m
  • Weight of loaded bags (boxes) 50kg
  • Belt width: 500 mm
  • Ascend limit of loading conveyor, 25°
  • Descend limit of loading conveyor, 18°
  • Limit turning angle of loading conveyor ±90°
  • Ambient operational temperature -40 ..+40 °С

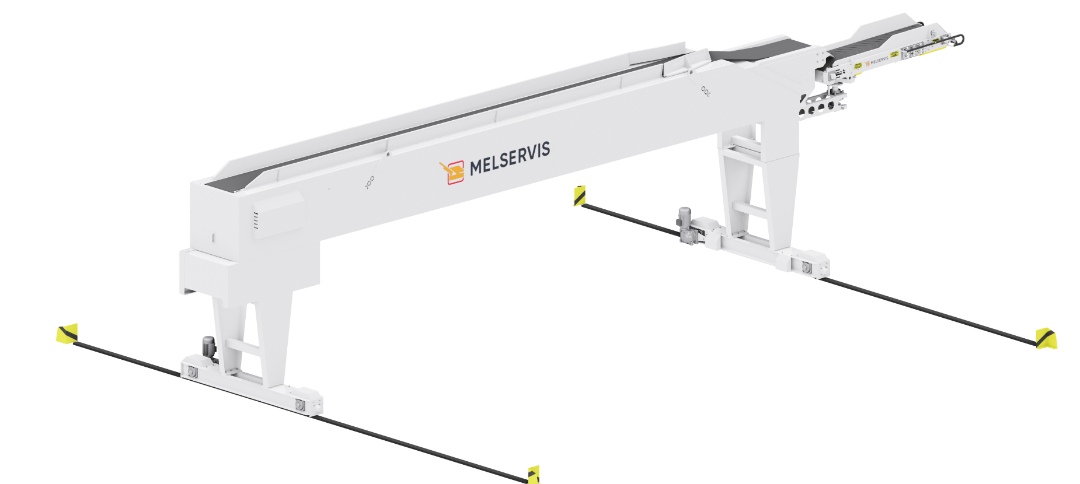

MAJOR ELEMENTS:

  1. Main section of telescopic conveyor
  2. Extendable section of telescopic conveyor
  3. Loading conveyor
  4. Luffing and slewing mechanism
  5. Control panels

Telescopic bag loading machine MS-PKT-A-12,4

up to 2400

BAGS PER HOUR

capacity

30

MINUTES

average time to load one truck

>10

YEARS

actual service life

1

OPERATOR
To perform stacking

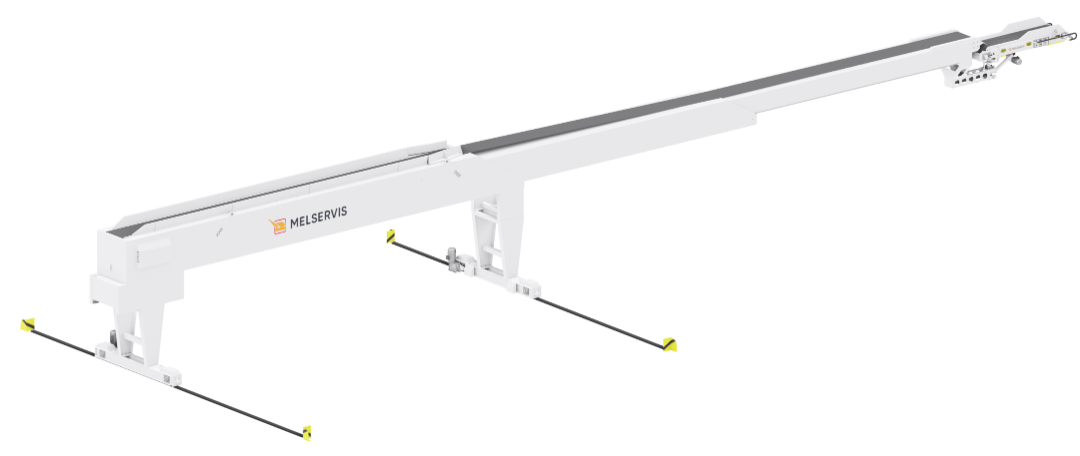

The key feature of this model is an extendable telescopic conveyor which makes the idle length of the stacker conveyor shorter than conventional stackers by 12 meters

Unique stacker conveyor

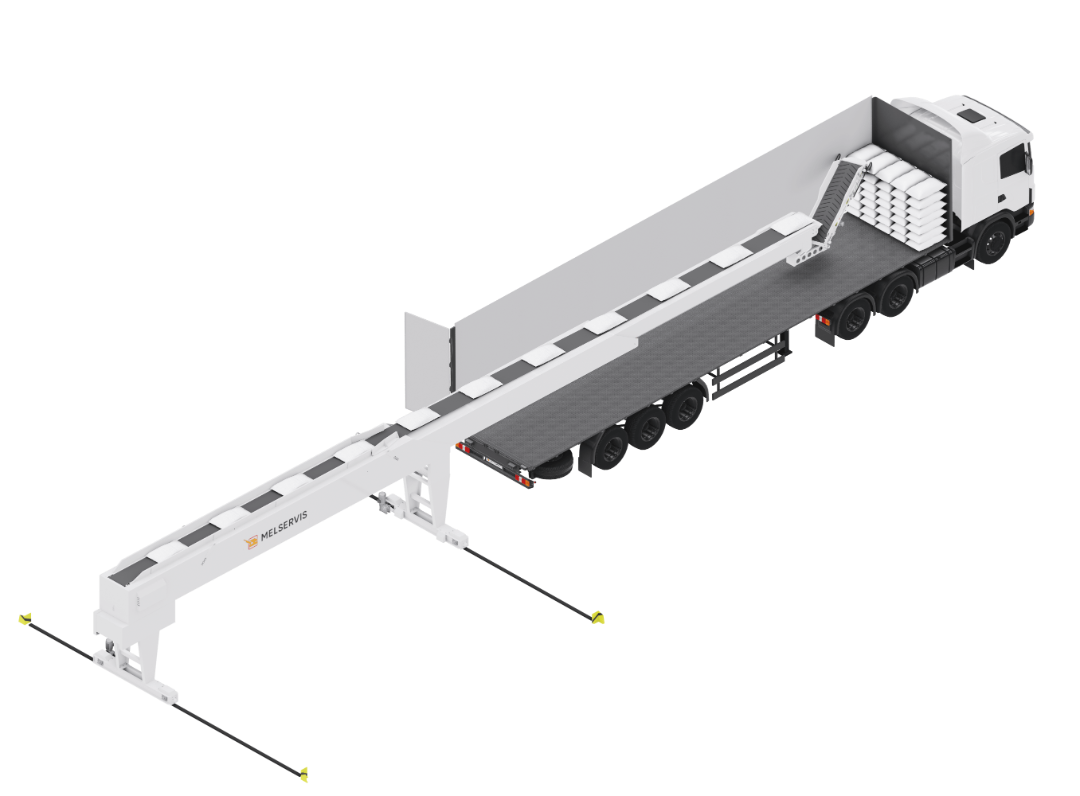

Our exclusive design is a stacker conveyor which enables to stack bags leftwards/rightwards and up/down and to load a truck with just one disburdened operator

  • ascending by 25°
  • descending by 18°
  • turning by ±90°

Уникальный поворотный конвейер

Consecutive stacking

Option of front-end movement along the rail track enables consecutive loading of trucks/containers

Последовательная загрузка

Unique features

We refined our sets of components for maximum safety and usability

Herringbone belt of stacker conveyor enables to convey bags at 25° angle

Herringbone belt of stacker conveyor enables to convey bags at 25° angle

User-friendly control system

User-friendly control system

Gearmotors by SEW eurodrive, Bonfiglioli

Gearmotors by SEW eurodrive, Bonfiglioli

Counting kit for bags

Counting kit for bags


Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Lighting of loading area and control cabinet heating

Lighting of loading area and control cabinet heating

Parts and units that contact with handled materials can be optionally manufactured from corrosion resistant steel AISI 304 and supplied with electrical equipment of IP-65

Safety

Our loading systems comply with technical regulations of Customs Union and Eurasian Union (CU TR 010/2011 «Safety of machinery») following the scheme 5d

Versatility

Implemented design solutions of this system ensure hassle-free installation at loading areas, logistics terminals and storage facilities of any type with using full advantage of available conveying systems and utilities

Flexibility

Our stacker conveyor can be customized for reclaiming bags from trucks and containers

Comprehensive solutions

Stacker conveyor can be optionally supplied with required conveying systems for bag infeed. We are also glad to offer you services on manufacturing and installation of trestles, covers and associated equipment

Optional services

We know what you need for efficient loading and we can arrange it

Manufacturing and installation of trestles, covers and associated equipment

Turnkey services

Manufacturing and installation of trestles, covers and associated equipment

We supply associated equipment

We supply associated equipment

Conveyors and conveying systems to transport bags from bagging station to the warehouse, around the warehouse and to the loading station.
