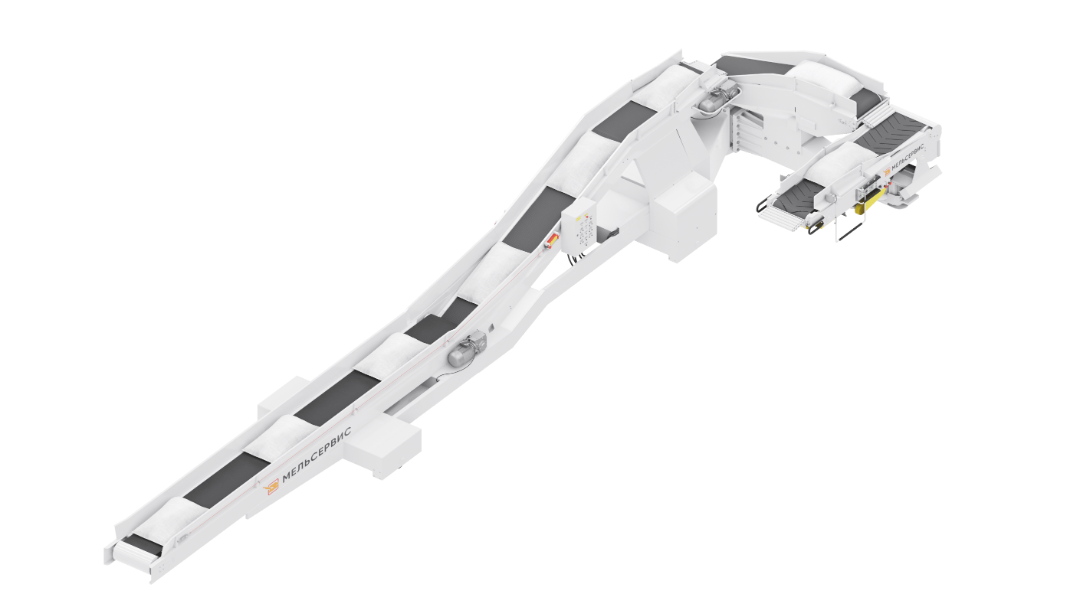

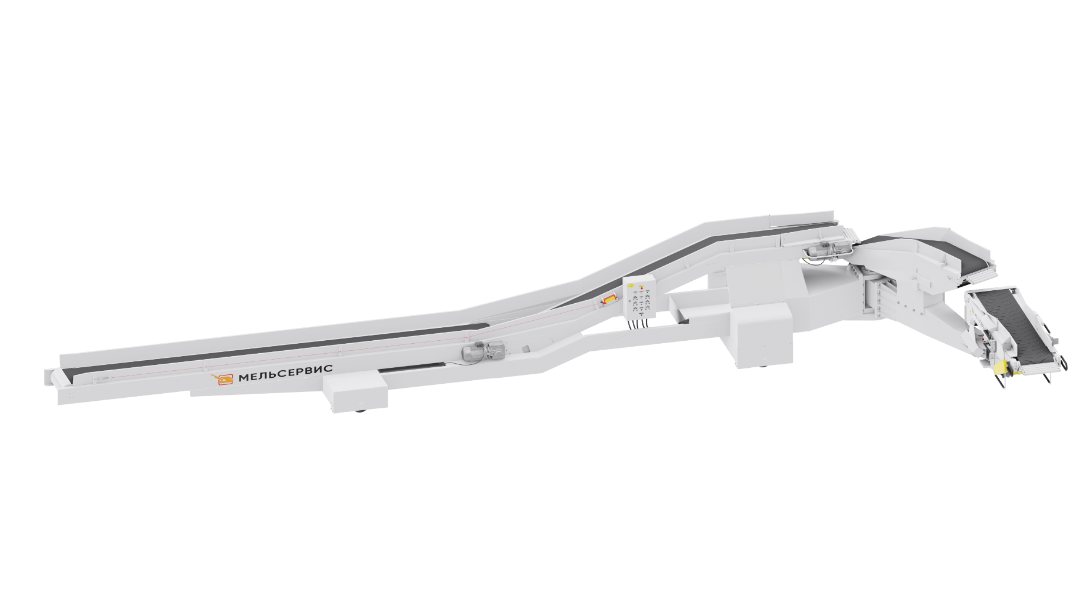

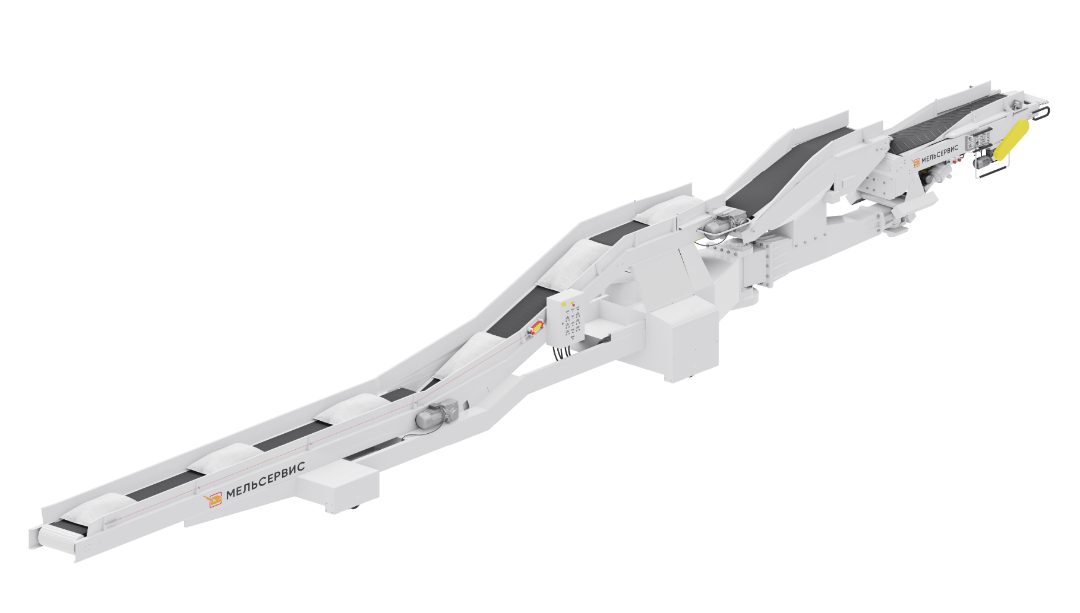

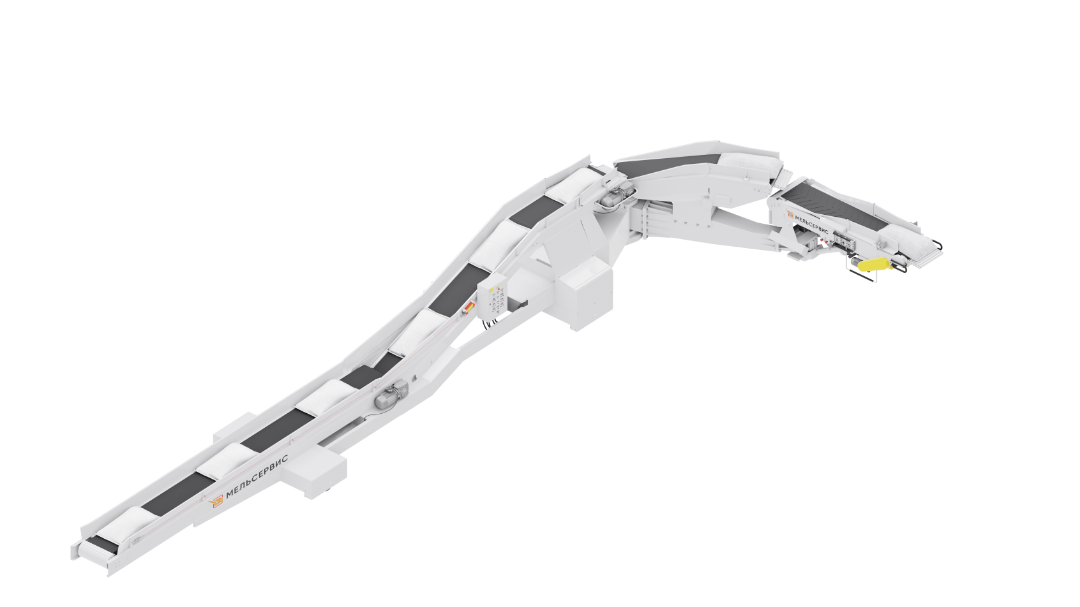

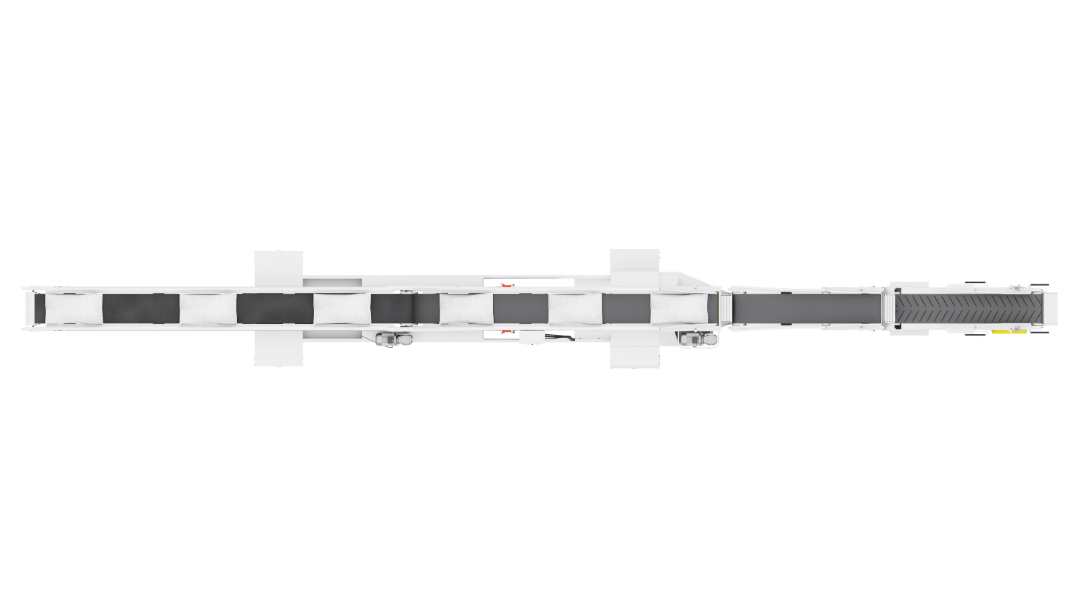

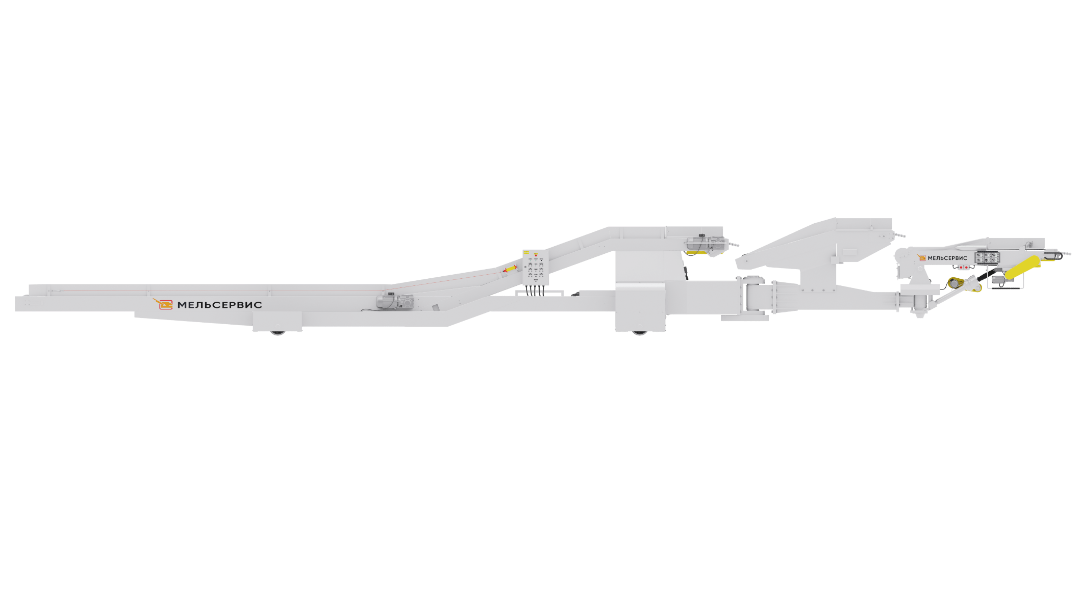

Comprehensive bag loading machine for railcars KMPV-16M
Stacking of 25-60kg bags and packaged cargo into closed railcars
TECHNICAL SPECIFICATIONS:
- Capacity: up to 2400 bags per hour
- Overall length: 17,5-18,7m
- Length of main conveyor: 12m
- Loading area of up to 14m
- Weight of loaded bags (boxes) up to 60kg
- Belt width: 500mm
- Ascend limit of telescopic conveyor, 25°
- Descend limit of telescopic conveyor, 15°
- Limit turning angle of telescopic conveyor ±100°
- Limit turnung angle of intermediate conveyor ±90°
- Limit operational travel of section extension of telescopic conveyor 1,2m
- Ambient operational temperature -40 ..+40 °С

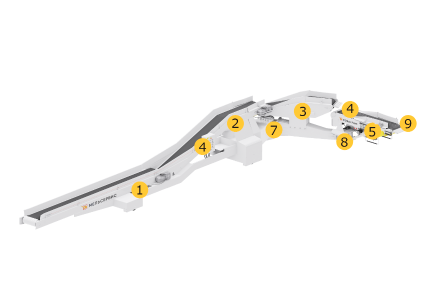

MAJOR ELEMENTS:
- Main horizontal conveyor
- Main inclined conveyor
- Intermediate conveyor
- Telescopic conveyor
- Control cabinet
- Control panels
- Slewing mechanism
- Luffing and slewing mechanism
- Adjustable roller tables

Technical capabilities of stacking system enable mechanized loading of trucks of up to 6m length if access route provided
up to 2400
capacity
60
average time to load one rail car
>10
actual service life
1
Unique design

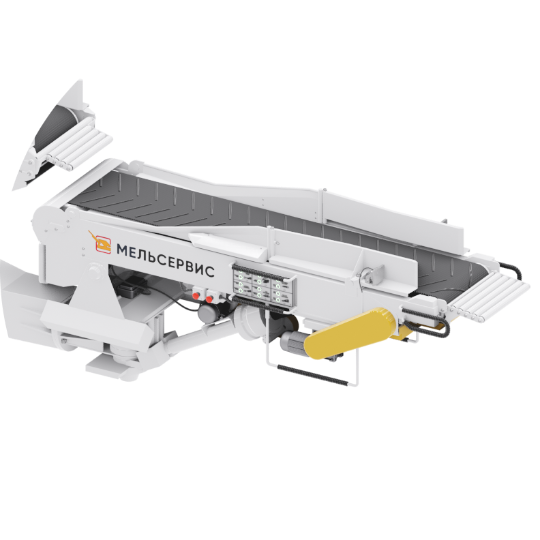

Telescopic conveyor
1,2m extension forwards for stacking of topmost layer under the railcar deck

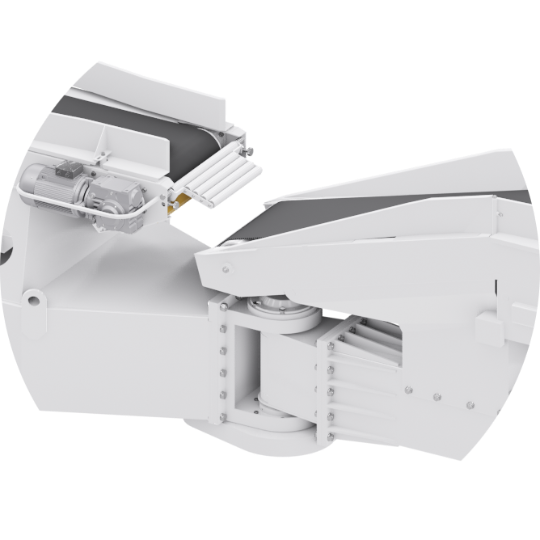

Hinged intermediate conveyor
Enables to turn intermediate conveyor by ±90° angle

Luffing and slewing unit of telescopic conveyor
Advanced flexibility of stacking conveyor for unmatched ease of stacking : ascend by 25°, descend by 15°, turning angle of ±100°






Unique features
We refined our sets of components for maximum safety and usability

Шевронная лента телескопического конвейера гарантирует подачу под углом 25°

Эргономичная система управления

Приводные устройства SEW Eurodrive, BONFIGLIOLI

Устройство счета мешков

Электрооборудование Siemens, Schneider Electric со степенью защиты до IP-65

Освещение зоны погрузки и обогрев щита управления
Safety
Our loading systems comply with technical regulations of Customs Union and Eurasian Union (CU TR 010/2011 «Safety of machinery») following the scheme 5d
Versatility
Implemented design solutions of this system ensure hassle-free installation at loading areas, logistics terminals and storage facilities of any type with using full advantage of available conveying systems and utilities
Comprehensive solutions
Stacker conveyor can be optionally supplied with required conveying systems for bag infeed. We are also glad to offer you services on manufacturing and installation of trestles, covers and associated equipment
Optional services
We know what you need for efficient loading and we can arrange it

Turnkey services

We supply associated equipment
Conveyors and conveying systems to transport bags from bagging station to the warehouse, around the warehouse and to the loading station.
