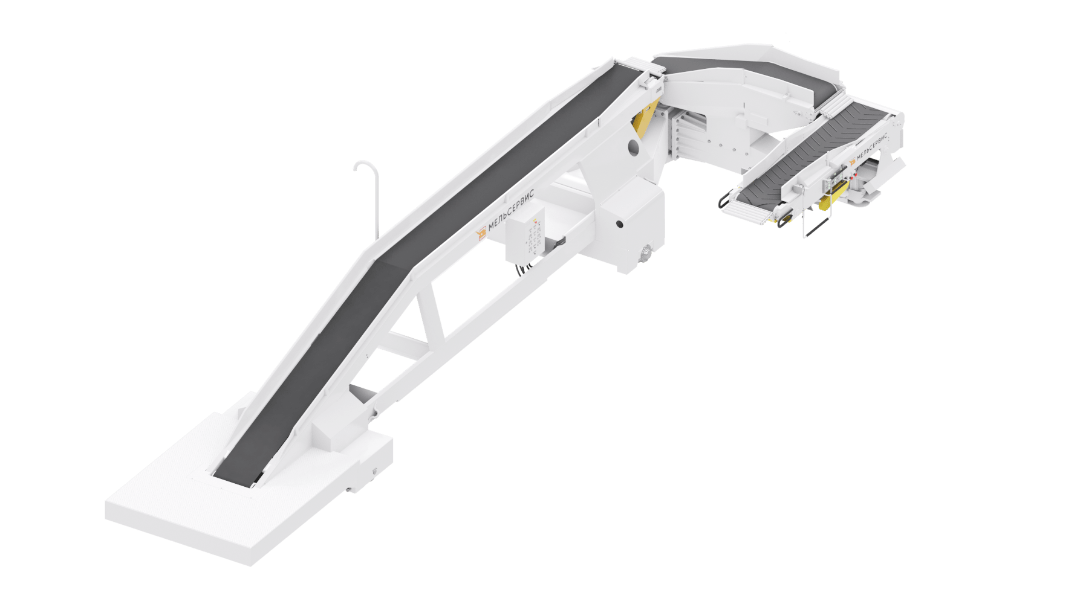

Comprehensive bag loading machine for railcars KMPV-16

Stacking of 25-60kg bags and packaged cargo into closed railcars

TECHNICAL SPECIFICATIONS:

  • Capacity: up to 2400 bags per hour
  • Overall length: 15,6-16,8m
  • Length of main conveyor: 10,1m
  • Loading area of up to 14m
  • Weight of loaded bags (boxes) up to 60kg
  • Belt width: 500mm
  • Ascend limit of telescopic conveyor, 25°
  • Descend limit of telescopic conveyor, 15°

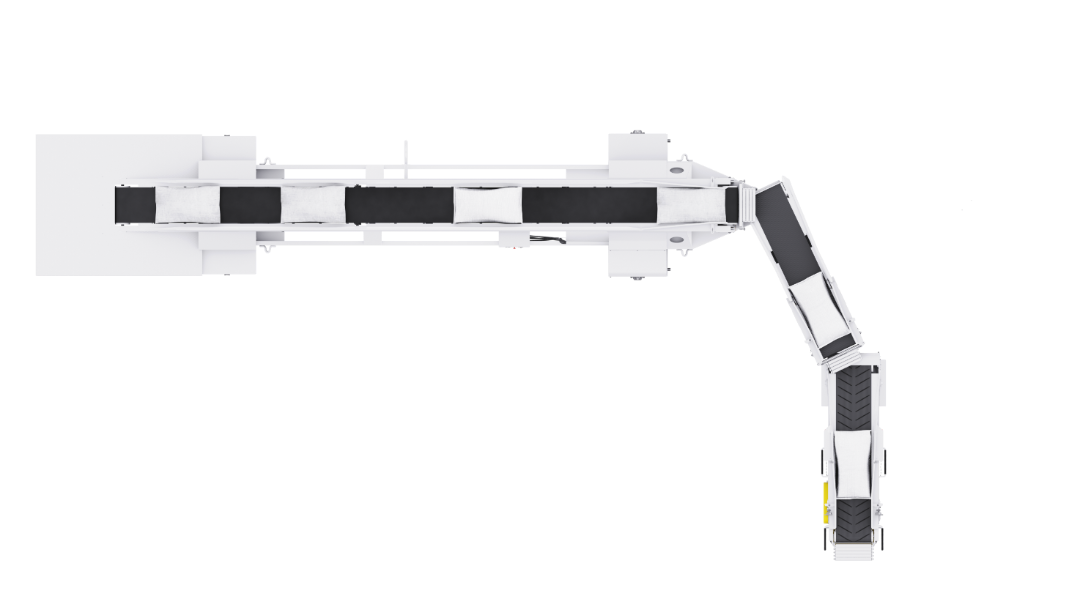

  • Limit turning angle of telescopic conveyor ±100°
  • Limit turnung angle of intermediate conveyor ±90°
  • Limit operational travel of section extension of telescopic conveyor 1,2m
  • Ambient operational temperature -40 ..+40 °С

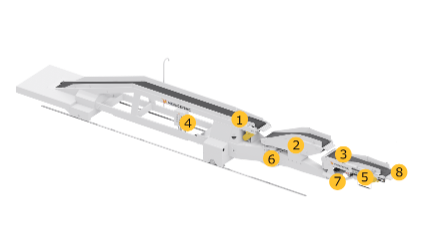

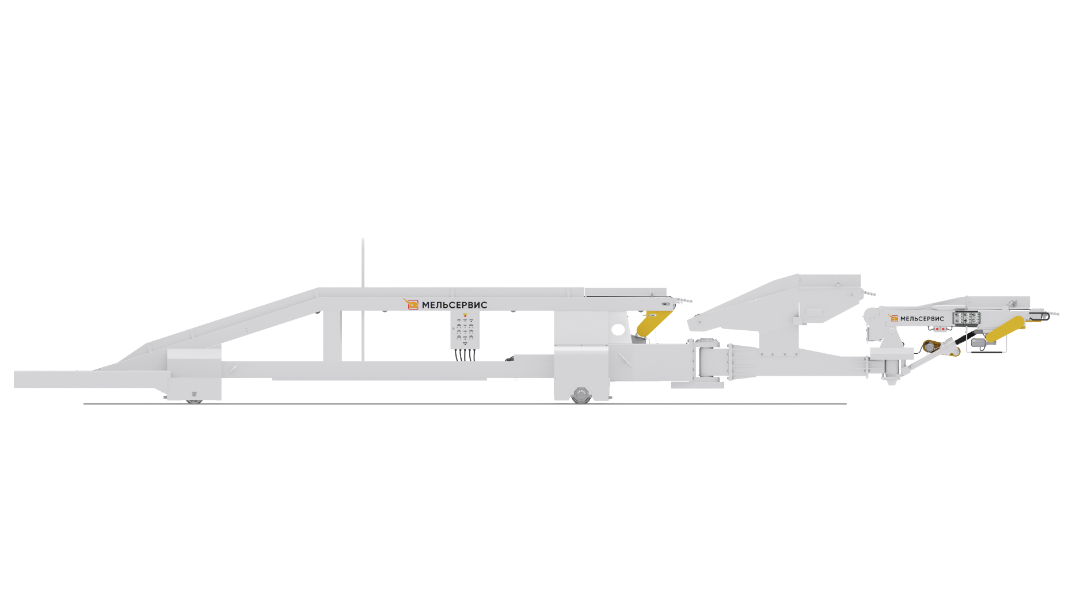

MAJOR ELEMENTS:

  1. Main inclined conveyor
  2. Intermediate conveyor
  3. Telescopic conveyor
  4. Control cabinet
  5. Control panels
  6. Slewing mechanism
  7. Luffing and slewing mechanism
  8. Adjustable roller tables

Comprehensive bag loading machine for railcars KMPV-16

Technical capabilities of stacking system enable mechanized loading of trucks of up to 6m length if access route provided

up to 2400

BAGS PER HOUR

capacity

60

MINUTES

average time to load one rail car

>10

YEARS

actual service life

1

OPERATOR
to perform stacking

Unique design

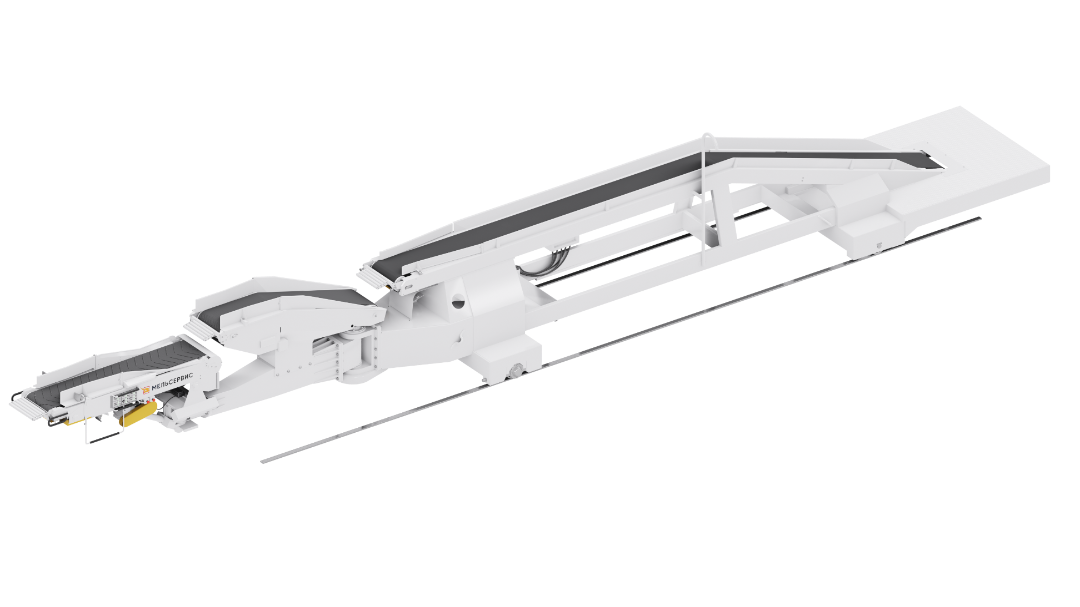

Telescopic conveyor

Telescopic conveyor

1,2m extension forwards for stacking of topmost layer under the railcar deck

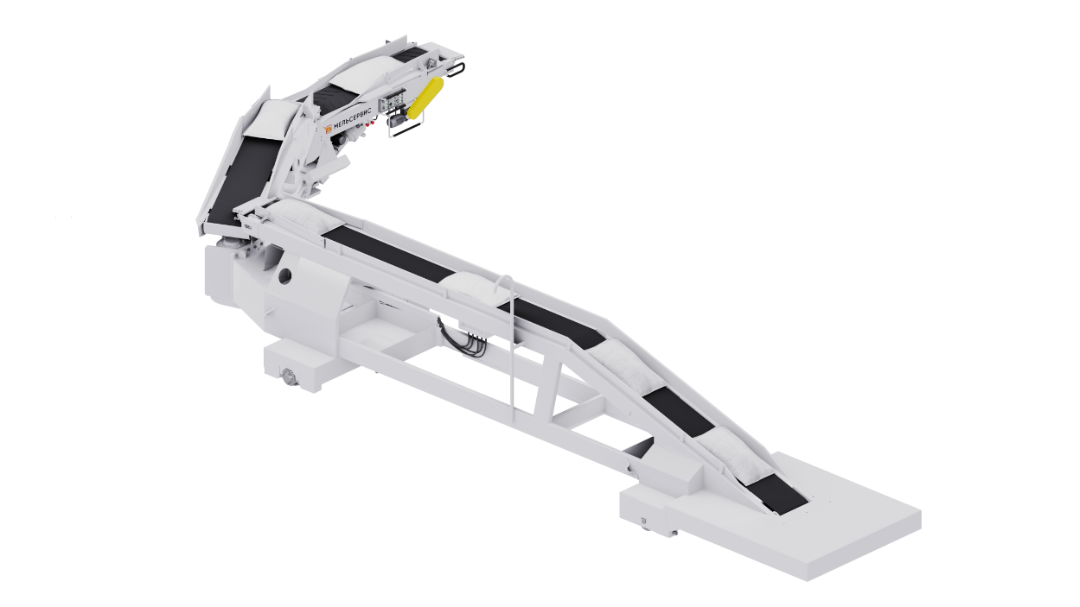

Hinged intermediate conveyor

Enables to turn intermediate conveyor by ±90° angle

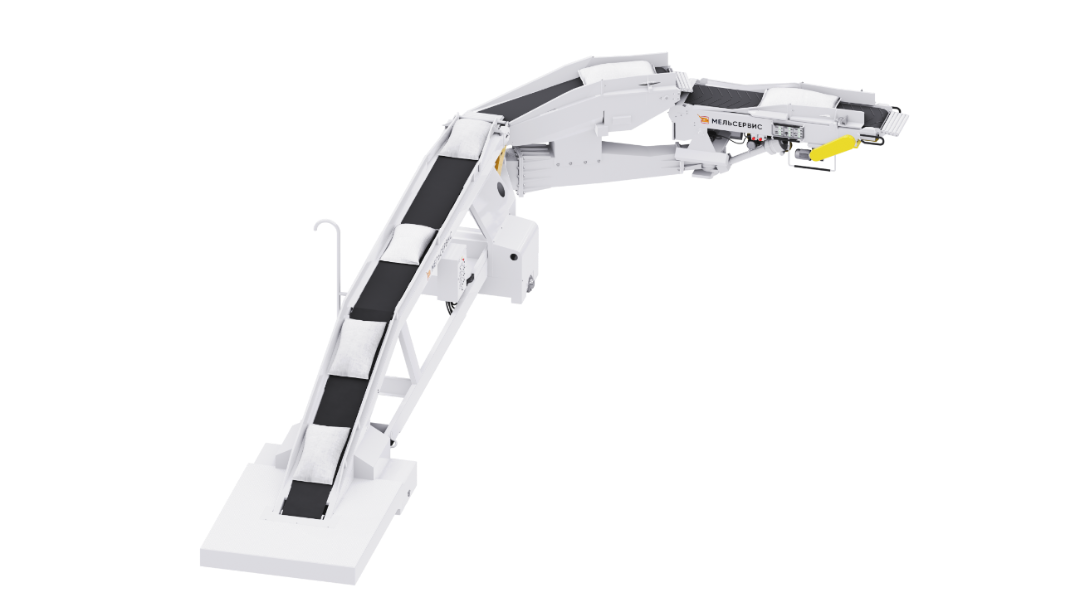

Luffing and slewing unit of telescopic conveyor

Advanced flexibility of stacking conveyor for unmatched ease of stacking : ascend by 25°, descend by 15°, turning angle of ±100°

Unique features

We refined our sets of components for maximum safety and usability

Herringbone belt of stacker conveyor enables to convey bags at 25° angle

Herringbone belt of stacker conveyor enables to convey bags at 25° angle

User-friendly control system

User-friendly control system

Gearmotors by SEW eurodrive, Bonfiglioli

Gearmotors by SEW eurodrive, Bonfiglioli

Counting kit for bags

Counting kit for bags


Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Lighting of loading area and control cabinet heating

Lighting of loading area and control cabinet heating

Parts and units that contact with handled materials can be optionally manufactured from corrosion resistant steel AISI 304 and supplied with electrical equipment of IP-65

Safety

Our loading systems comply with technical regulations of Customs Union and Eurasian Union (CU TR 010/2011 «Safety of machinery») following the scheme 5d

Versatility

Implemented design solutions of this system ensure hassle-free installation at loading areas, logistics terminals and storage facilities of any type with using full advantage of available conveying systems and utilities

Comprehensive solutions

Stacker conveyor can be optionally supplied with required conveying systems for bag infeed. We are also glad to offer you services on manufacturing and installation of trestles, covers and associated equipment

Optional services

We know what you need for efficient loading and we can arrange it

Manufacturing and installation of trestles, covers and associated equipment

Turnkey services

Manufacturing and installation of trestles, covers and associated equipment

We supply associated equipment

We supply associated equipment

Conveyors and conveying systems to transport bags from bagging station to the warehouse, around the warehouse and to the loading station.
