LOADING SYSTEMS

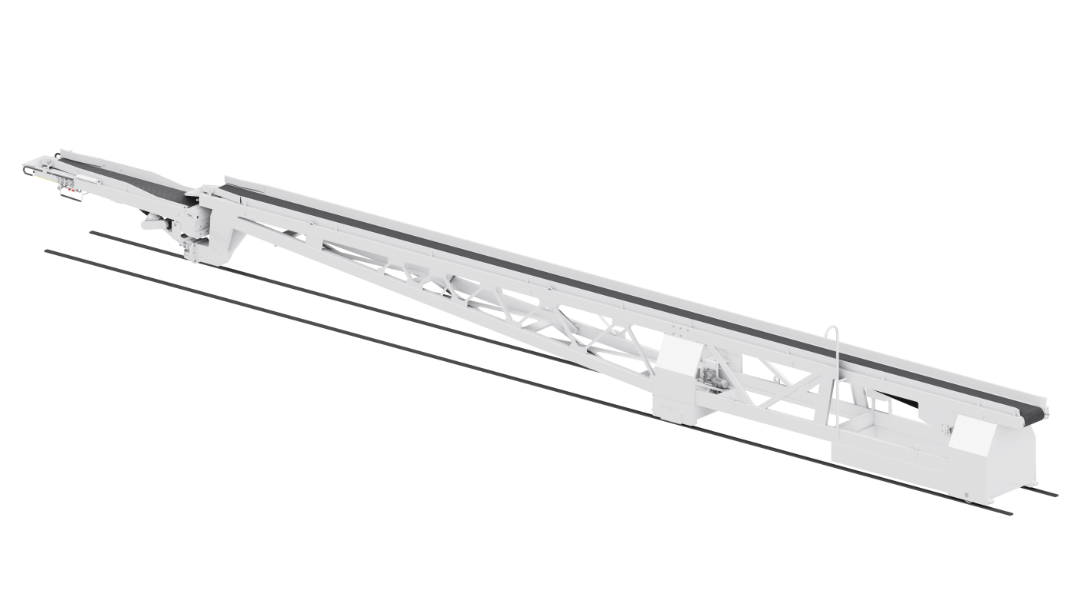

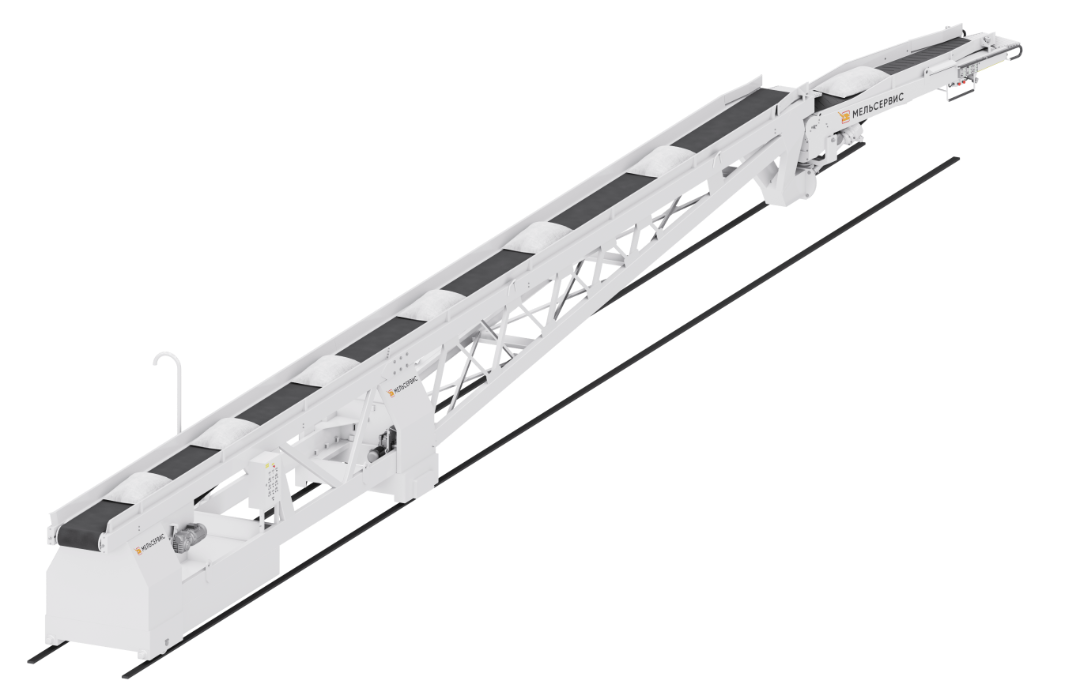

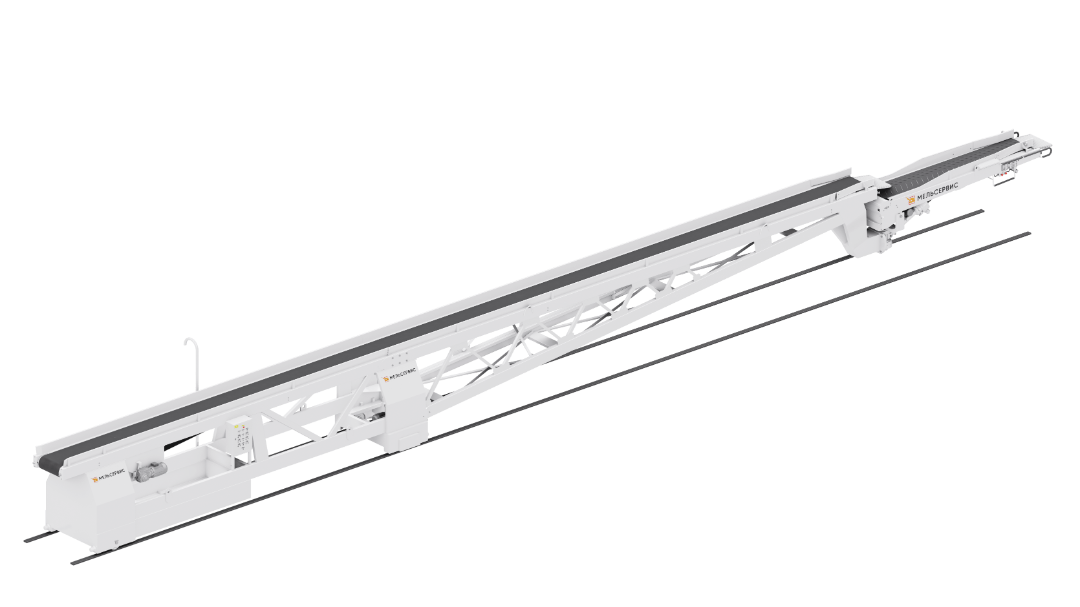

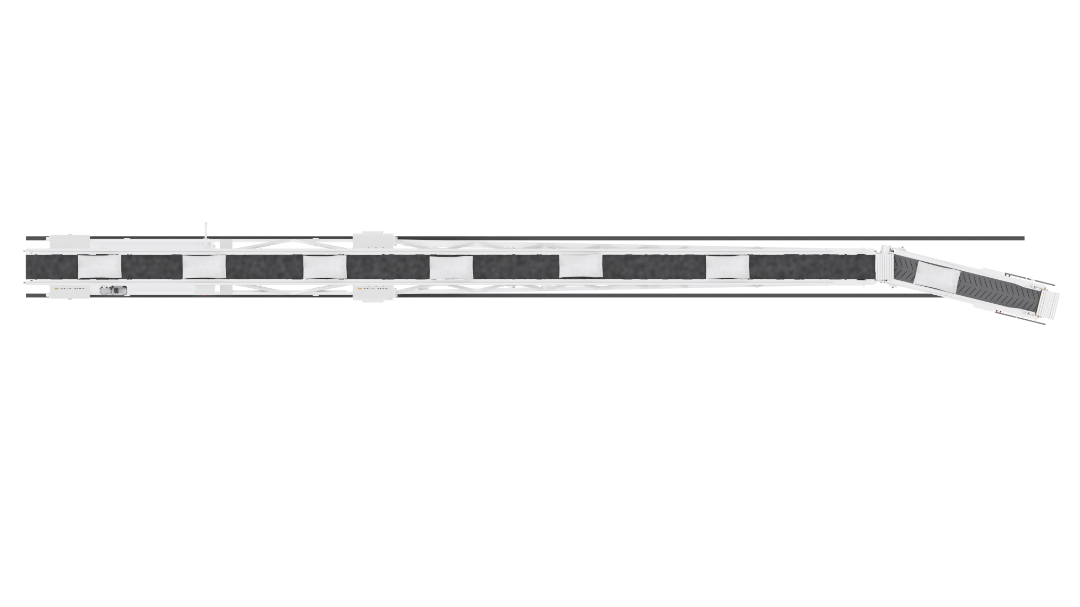

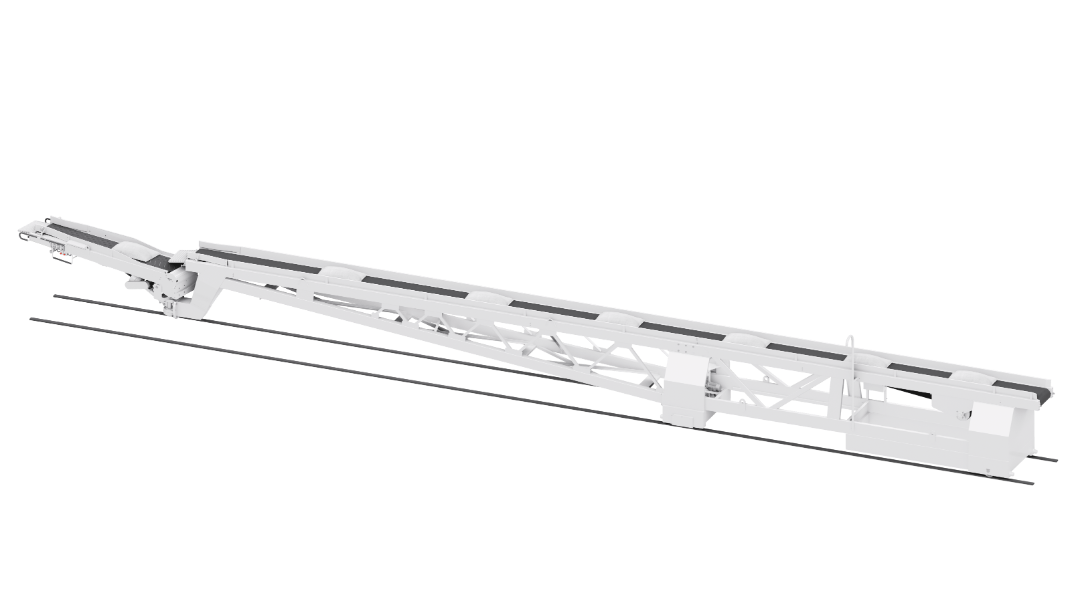

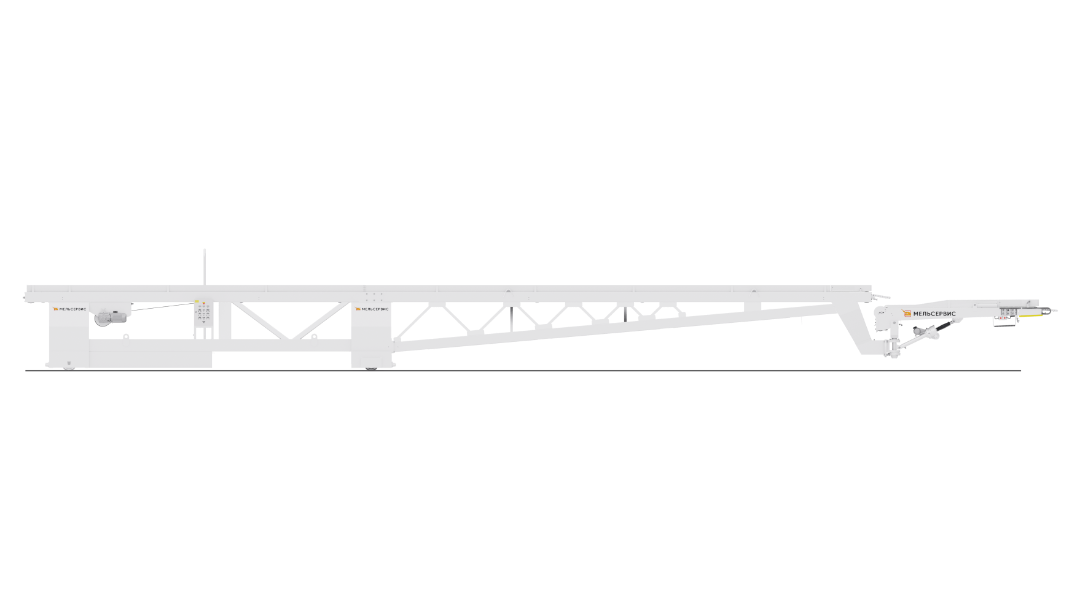

Comprehensive bag loading machine for trucks KMPA-21

Stacking of 10-60kg bags and packaged cargo cargo into long vehicles and maritime containers of 20ft. and 40ft.

Технические характеристики:

  • Capacity: up to 2400 bags per hour
  • Overall length: 21m
  • Length of main conveyor: 17,7m
  • Loading area of up to 15m
  • Weight of loaded bags (boxes) up to 60kg
  • Belt width: 500mm
  • Ascend limit of radial conveyor, 20°
  • Descend limit of radial conveyor, 15°
  • Limit turning angle of radial conveyor ±85°
  • Radial travel of stacker 13,5m
  • Ambient operational temperature -40 ..+40 °С

Основные элементы:

  1. Main conveyor
  2. Radial conveyor
  3. Control cabinet
  4. Control panels
  5. Luffing and slewing mechanism

Comprehensive bag loading machine for trucks KMPA-21

up to 2400

BAGS PER HOUR

capacity

30

MINUTES

average time to load one truck

>10

YEARS

actual service life

1

OPERATOR
to perform stacking

Unique stacker conveyor

Our exclusive design is a stacker conveyor which enables to stack bags leftwards/rightwards and up/down and to load a truck with just one disburdened operator

  • ascending by 20°
  • descending by 15°
  • turning by ±85°

Уникальный поворотный конвейер

Unique features

We refined our sets of components for maximum safety and usability

Herringbone belt of stacker conveyor enables to convey bags at 20° angle

Herringbone belt of stacker conveyor enables to convey bags at 20° angle

User-friendly control system

User-friendly control system

Gearmotors by SEW eurodrive, Bonfiglioli

Gearmotors by SEW eurodrive, Bonfiglioli

Counting kit for bags

Counting kit for bags


Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Electrical equipment by Siemens, Schneider Electric of up to IP-65 safety class

Lighting of loading area and control cabinet heating

Lighting of loading area and control cabinet heating

Parts and units that contact with handled materials can be optionally manufactured from corrosion resistant steel AISI 304 and supplied with electrical equipment of IP-65

Safety

Our loading systems comply with technical regulations of Customs Union and Eurasian Union (CU TR 010/2011 «Safety of machinery») following the scheme 5d

Versatility

Implemented design solutions of this system ensure hassle-free installation at loading areas, logistics terminals and storage facilities of any type with using full advantage of available conveying systems and utilities

Comprehensive solutions

Stacker conveyor can be optionally supplied with required conveying systems for bag infeed. We are also glad to offer you services on manufacturing and installation of trestles, covers and associated equipment

Optional services

We know what you need for efficient loading and we can arrange it

Manufacturing and installation of trestles, covers and associated equipment

Turnkey services

Manufacturing and installation of trestles, covers and associated equipment

We supply associated equipment

We supply associated equipment

Conveyors and conveying systems to transport bags from bagging station to the warehouse, around the warehouse and to the loading station.
